Biological Safety Cabinets in Pathology Labs: Working Principles, Applications and Maintenance Guide
Discover how Biological Safety Cabinets ensure safety in pathology departments. This comprehensive guide explains BSC operation principles, demonstrates their critical functions in tissue processing, and provides essential maintenance protocols to maintain compliance with ISO and GMP standards.
I. Definition and Overview

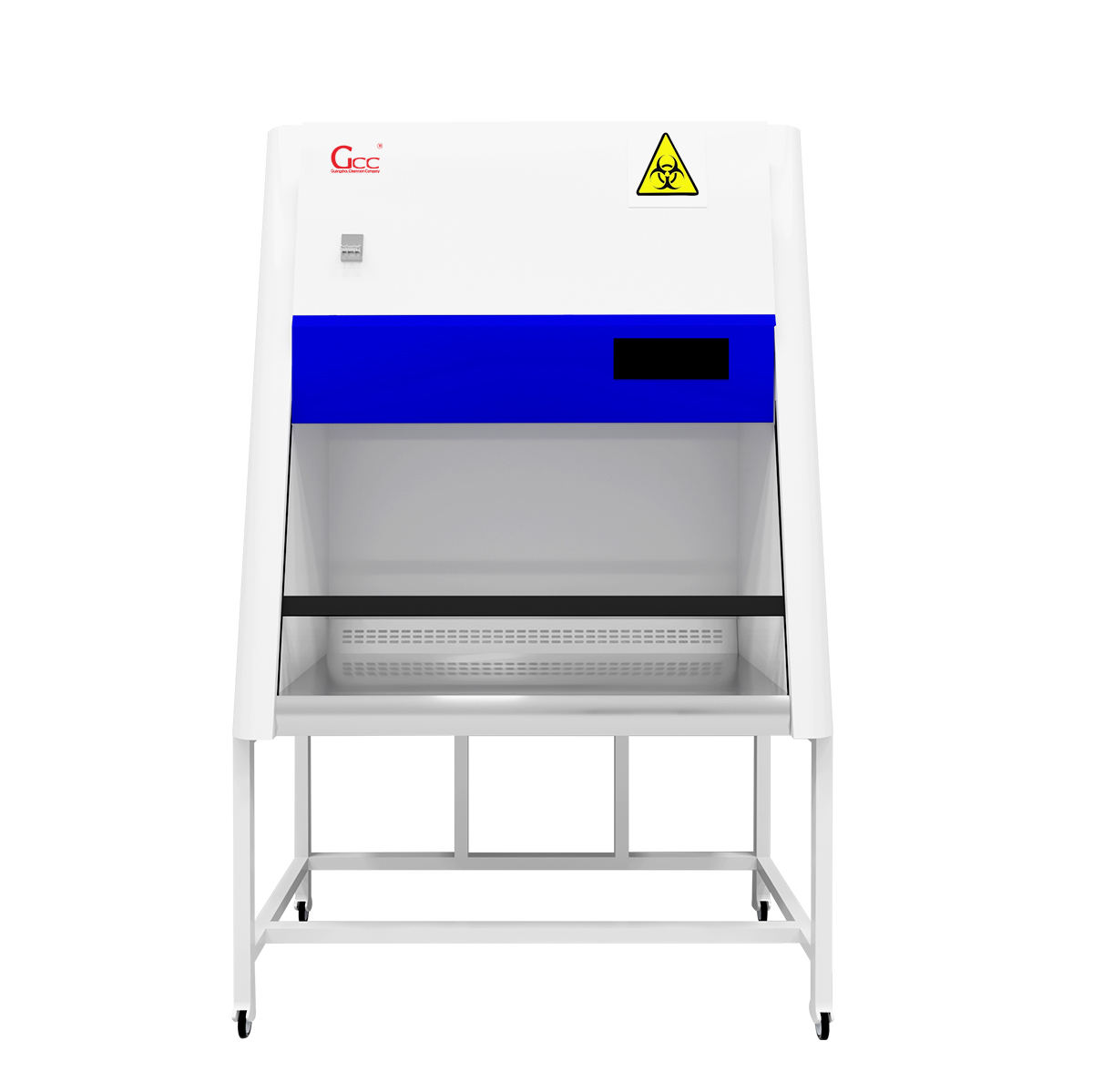

A Biological Safety Cabinet (BSC) is a primary containment device used in pathology laboratories to provide personnel, environmental, and product protection when working with biological agents. BSCs are engineered to create a controlled, sterile workspace through High-Efficiency Particulate Air (HEPA) filtration of both inflow and downflow air. In pathology, where handling of human tissue samples, blood, and other potentially infectious materials is routine, BSCs are indispensable for maintaining biosafety standards. Key terminology includes:
- HEPA Filter: A high-efficiency particulate air filter that removes 99.97% of airborne particles 0.3 micrometers in diameter.
- Containment: The confinement of biological agents to prevent their escape into the environment.
- Laminar Airflow: A unidirectional flow of air with minimal turbulence, essential for maintaining a sterile field.
- Face Velocity: The speed of air entering the cabinet front opening, critical for containment.
II. Working Principle
The fundamental operating principle of a BSC is the creation of a unidirectional, vertical laminar airflow pattern. Room air is drawn in through the front grille, passing through a HEPA filter that removes particulate contaminants. This filtered air then descends in a laminar fashion over the work surface, providing product protection. A portion of this downflow air is exhausted through the rear or front grilles after passing through another HEPA filter, ensuring environmental protection. The constant inward airflow at the access opening acts as an air curtain, preventing the escape of aerosols and ensuring personnel protection. The balanced airflow system is meticulously calibrated to maintain these protective functions simultaneously.
III. Primary Functions and Roles
BSCs serve three critical functions in a pathology setting:
- Personnel Protection: Shields laboratory workers from airborne infectious agents generated during procedures such as tissue homogenization, cytocentrifugation, and smear preparation.
- Product Protection: Prevents contamination of sensitive specimens (e.g., tissue cultures, microbiological samples) by maintaining a sterile, ISO Class 5 environment within the work zone.
- Environmental Protection: Safeguards the laboratory and external environment by filtering potentially hazardous aerosols before they are exhausted.
IV. Structural Features and Materials
Modern BSCs are constructed with durability, cleanability, and functionality in mind. The primary material is typically type 304 or 316 stainless steel, prized for its corrosion resistance and ease of decontamination. Key structural components include:
- Work Zone: A seamless, coved stainless steel interior with no sharp corners to facilitate cleaning.
- Front Viewing Sash: A tempered safety glass panel that can be adjusted vertically. It acts as a physical barrier and is integral to maintaining proper airflow.
- HEPA Filter Housings: Designed to provide a leak-tight seal, ensuring all air passes through the filters.
- Control Panel Features digital displays for monitoring face velocity, downflow velocity, and alarm systems for filter clogging or sash misposition.
- Access Openings: For electrical outlets, gas fixtures, or other services, designed to maintain cabinet integrity.
V. Classification and Technical Parameters
BSCs are classified (by NSF/ANSI 49, EN 12469) based on their construction, airflow patterns, and level of containment. Class II cabinets, which are most common in pathology, are further divided into Types A2, B1, and B2. The selection depends on the biosafety level of the agents handled and the types of procedures performed.
| Parameter | Class II, Type A2 | Class II, Type B2 | Typical Range |
|---|---|---|---|
| Inflow Velocity | 0.50 m/s (100 fpm) | 0.50 m/s (100 fpm) | 0.40 – 0.60 m/s |
| Downflow Velocity | 0.33 – 0.50 m/s | 0.33 – 0.50 m/s | 0.25 – 0.55 m/s |
| Airflow Pattern | 70% recirculated, 30% exhausted | 100% exhausted (no recirculation) | – |
| HEPA Filtration Efficiency | >99.99% on 0.3µm particles | >99.99% on 0.3µm particles | ≥99.97% (standard) |
| Noise Level | < 67 dBA | < 69 dBA | 60 – 70 dBA |
| Power Consumption | 0.5 – 1.0 kW | 1.5 – 3.0 kW | Varies with size |
| Common Work Surface Dimensions (WxD) | 1.2m x 0.6m (4ft) | 1.5m x 0.7m (5ft) | 0.9m to 2.4m width |
VI. Typical Application Industries
While the primary focus is pathology, BSCs are critical in various sectors:
- Hospital Pathology & Cytology Labs: For processing tissue biopsies, body fluids, and preparing cytology smears.
- Pharmaceutical Industry: In quality control and research involving cell cultures and sterile product preparation.
- Biotechnology: For genetic engineering, vaccine development, and other bioprocessing applications.
- Forensic Laboratories: Handling evidence that may contain biological materials.
- Academic and Research Institutions: In microbiology, virology, and cell biology research.
VII. Installation and Usage Considerations
Proper installation and operation are paramount for BSC performance and compliance with international standards like GMP and ISO 14644 for cleanrooms.
- Location: Install away from doors, high-traffic areas, and air conditioning vents to minimize air turbulence that can disrupt the protective air curtain.
- Certification: Must be certified upon installation, after relocation, and annually thereafter by a qualified professional to NSF/ANSI 49 or equivalent standards.
- Operational Protocol: Work should be performed slowly and deliberately in the middle to rear of the work surface to minimize disruption of laminar airflow. Avoid blocking front and rear grilles.
- Personal Protective Equipment (PPE): Lab coats and gloves must always be worn. Use of additional PPE is determined by the risk assessment of the materials being handled.
- Sash Management: The viewing sash must be kept at the certified operating height (usually marked). Never operate the BSC with the sash fully open.
Note on Standards: Compliance with ISO 14644 ensures the surrounding environment’s particulate count is controlled, which directly impacts the longevity and efficiency of the BSC’s HEPA filters.
VIII. Maintenance and Servicing Recommendations
A rigorous maintenance schedule is essential for sustained performance and safety.
- Daily: Wipe down the work surface, interior walls, and viewing sash with a suitable disinfectant (e.g., 70% ethanol, sodium hypochlorite solution). Allow the cabinet to run for 10-15 minutes before and after use to purge contaminants.
- Weekly/Monthly: Check and clean the exterior surfaces and the area around the grilles. Inspect the sash for smooth operation.
- Annually: Mandatory certification testing including HEPA filter integrity testing (DOP/PAO challenge), airflow velocity measurements, and particle counting. This must be performed by an accredited technician.
- Filter Replacement: HEPA filters should be replaced when they reach their final pressure drop (as indicated by the manometer) or fail the integrity test. This is a specialized task requiring decontamination of the cabinet beforehand.
- Decontamination: The entire cabinet must be decontaminated with a gaseous agent (e.g., formaldehyde vapor, hydrogen peroxide vapor) before moving the unit, replacing filters, or performing major internal repairs.
- Calibration: Calibrate airflow velocity sensors and alarms as part of the annual certification process.
Critical Reminder: All maintenance records, including certification reports and service logs, must be meticulously documented to meet regulatory and accreditation requirements (e.g., CAP, CLIA).
In conclusion, the Biological Safety Cabinet is a cornerstone of biosafety in the modern pathology laboratory. Its sophisticated design and precise engineering provide a critical barrier against occupational and environmental hazards. Adherence to strict operational protocols and a proactive maintenance regimen are non-negotiable for ensuring its continued efficacy and compliance with global standards.
