Essential Pathology Lab Equipment Guide 2024 | Selection & Comparison
Explore a comprehensive guide to pathology laboratory equipment. Learn how to choose efficient and safe devices like grossing stations, tissue processors, and microtomes for optimal diagnostic accuracy.
Abstract: The modern pathology laboratory is a complex environment reliant on specialized equipment to ensure accurate and efficient diagnostic outcomes. This article provides a detailed examination of core equipment, including grossing stations, tissue processors, cryostats, microtomes, and pathological refrigerators. We analyze their functionalities, technical specifications, and critical factors for selection, focusing on material composition, configuration options, and performance metrics to guide procurement decisions for pathology professionals.

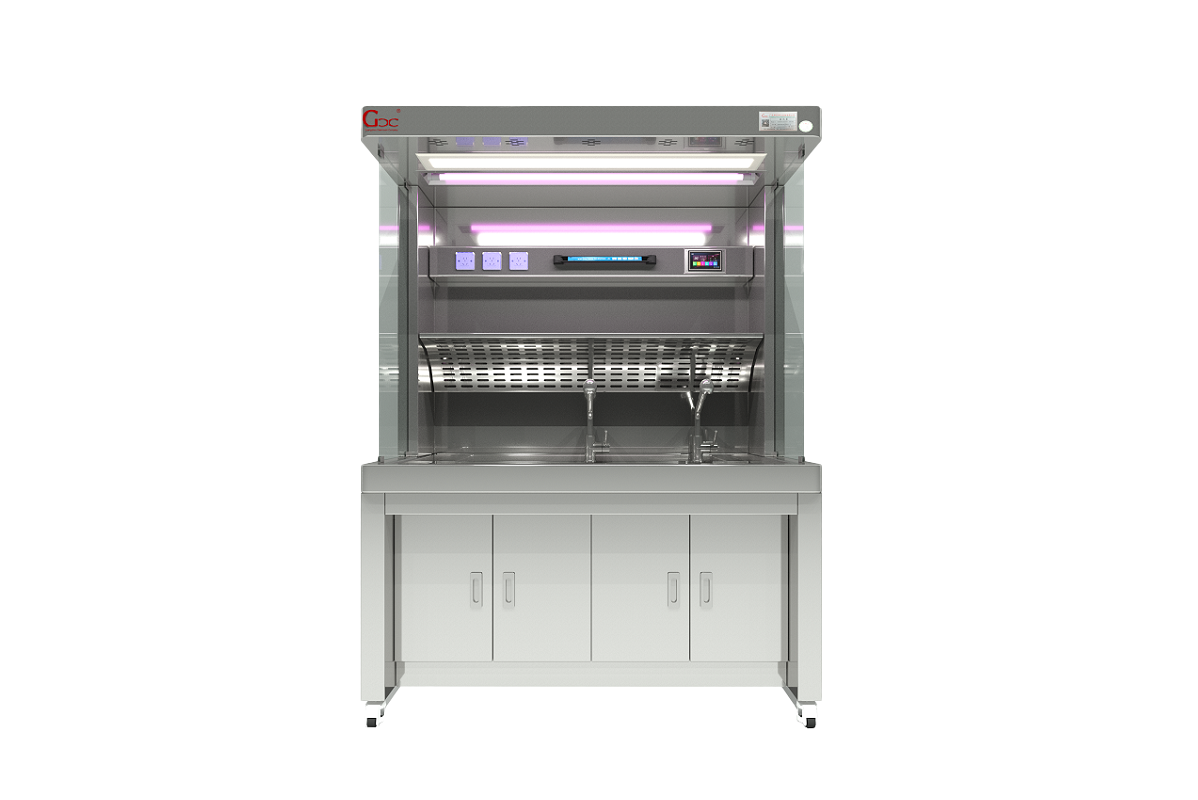

I. Grossing Stations: The Primary Interface for Specimen Examination
The grossing station is the initial point of contact for surgical and biopsy specimens. Its primary function is to provide a safe, ergonomic, and well-ventilated environment for the macroscopic examination, description, dissection, and sampling of tissue.
1.1 Functional Components and Technical Parameters
- Ventilation System: A downdraft or backdraft ventilation system is essential for capturing formalin and other chemical vapors. Key parameters include face velocity (typically 100-150 fpm) and noise level (<65 dBA).
- Work Surface: Constructed from materials like stainless steel (Grade 304 or 316) or solid epoxy resin, which are resistant to corrosion, chemicals, and easy to disinfect.
- Integrated Components: May include sinks with hot/cold water, dictation systems, task lighting, calibrated scales, and specimen storage drawers.
1.2 Configuration and Material Analysis
| Feature | Option A (Standard) | Option B (Premium) | Advantages/Disadvantages |
|---|---|---|---|
| Work Surface Material | 304 Stainless Steel | 316 Stainless Steel / Solid Epoxy | 304 SS: Cost-effective, good chemical resistance. 316 SS/Epoxy: Superior resistance to chlorides and acids, longer lifespan. |
| Ventilation Type | Standard Downdraft | Dual-Downdraft or Perimeter Extraction | Standard: Adequate for most specimens. Dual/Perimeter: Enhanced containment for high-risk or large specimens. |
| Automation | Manual controls | Programmable airflow, digital displays | Manual: Simpler operation. Automated: Improved reproducibility, user tracking, and energy efficiency. |
Selection Insight: For laboratories handling a high volume of complex oncological specimens, investment in a premium station with enhanced chemical resistance and airflow control is justified for improved safety and workflow.
II. Tissue Processors: Automating Dehydration and Infiltration
Tissue processors automate the critical steps of tissue dehydration, clearing, and paraffin wax infiltration, which are prerequisites for microtomy. Modern processors are either rotary (tissue cassette carousel) or linear (tissue cassette carrier on a rail).
2.1 Key Technical Specifications
- Capacity: Ranges from 50 to over 300 cassettes. Throughput must align with laboratory workload.
- Processing Modalities: Vacuum and pressure cycles are used to enhance reagent penetration and reduce processing time.
- Reagent Management: Closed-system processors minimize reagent evaporation and exposure, while open systems are more flexible but require careful fume control.
- Programmability: Ability to store numerous protocols for different tissue types (e.g., biopsy, large surgical, bone).
2.2 Comparison of Enclosed vs. Open Systems
| System Type | Key Characteristics | Advantages | Disadvantages |
|---|---|---|---|
| Enclosed/Closed System | Reagents contained within sealed vessels; minimal vapor release. | Improved workplace safety, reduced reagent consumption, more consistent processing temperatures. | Higher initial cost, less flexibility for protocol adjustments mid-cycle. |
| Open System | Reagent stations are open to the air; requires external ventilation. | Lower initial cost, easier to monitor reagent levels, highly flexible protocols. | Higher reagent evaporation, potential for environmental contamination, requires robust laboratory ventilation. |
III. Microtomes and Cryostats: Precision Sectioning Instruments
These instruments are used for cutting thin sections of tissue. Microtomes are for paraffin-embedded tissue, while cryostats (freezing microtomes) are for frozen sections.
3.1 Microtomes for Paraffin Sections
- Type: Rotary microtomes are the standard. Sledge microtomes are used for harder tissues (e.g., bone).
- Sectioning Thickness: Adjustable, typically from 1 to 60 microns, with 3-5 µm being standard for H&E staining.
- Critical Features: Coarse and fine advancement mechanisms, knife-holder stability, and anti-roll guides for ribbon formation.
- Material: Heavy, cast-iron bases provide vibration dampening for consistent sectioning.
3.2 Cryostats for Frozen Sections
- Function: Maintains an internal chamber temperature of -15°C to -30°C to freeze and section fresh tissue for intraoperative diagnosis.
- Key Parameters: Cooling speed, temperature stability, sectioning thickness range (typically 5-20 µm), and defrost cycle efficiency.
- Configurations: Standard (manual) versus fully automated models with motorized sectioning and specimen orientation.
Selection Insight: For high-volume intraoperative consultation services, an automated cryostat significantly improves turnaround time and reduces operator variability. For routine use, a robust manual model is sufficient.
IV. Pathological Refrigerators and Freezers: Ensuring Specimen Integrity
These units are designed for the specific storage requirements of pathological materials, including fresh tissue, fixed tissue, blocks, and slides.
4.1 Types and Temperature Specifications
| Equipment Type | Temperature Range | Primary Use | Special Considerations |
|---|---|---|---|
| Laboratory Refrigerator | +2°C to +8°C | Storage of reagents, fresh tissue for short periods. | Explosion-proof models required for flammable material storage. |
| Ultra-Low Temperature (ULT) Freezer | -40°C to -86°C | Long-term storage of tissue for molecular studies, research samples. | High energy consumption; backup systems critical for valuable archives. |
| Paraffin Block/Slide Storage Cabinet | Ambient or Cooled (e.g., 18°C) | Archiving of paraffin blocks and glass slides. | Space-efficient, compactable shelving systems are essential for large archives. |
4.2 Material and Configuration Considerations
Interiors should be corrosion-resistant (stainless steel). Doors may be solid or glass. Glass doors facilitate inventory management but offer less insulation. For ULT freezers, cascade refrigeration systems are standard, and models with vacuum insulation panels offer better energy efficiency.
V. Conclusion: Strategic Selection for an Efficient Laboratory
The selection of pathology laboratory equipment is a critical decision that impacts diagnostic accuracy, operational efficiency, technician safety, and long-term operational costs. A thorough evaluation must go beyond initial purchase price to consider total cost of ownership, including maintenance, reagent consumption, energy usage, and compatibility with existing workflows. Prioritizing equipment with robust construction, user-friendly interfaces, and reliable service support will ensure a sustainable and high-performing pathology service. Future-proofing through modularity or connectivity with Laboratory Information Systems (LIS) is also an increasingly important factor in the modern digital pathology landscape.
