I. Definition and Overview

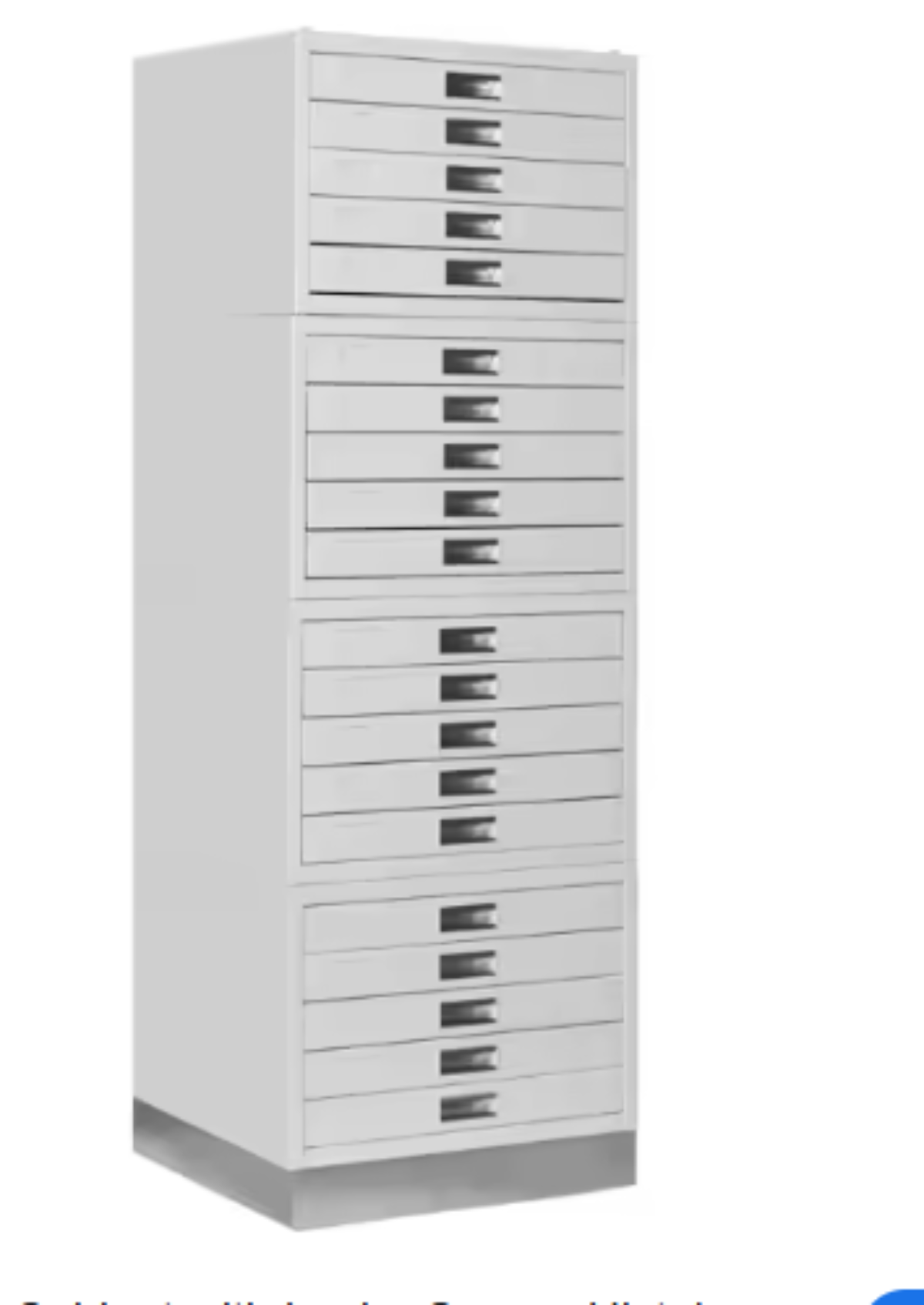

A paraffin block cabinet, also referred to as a paraffin block storage cabinet or tissue block storage cabinet, represents a specialized storage system engineered specifically for organizing and preserving paraffin-embedded tissue blocks in pathology laboratories. These sophisticated cabinets maintain optimal environmental conditions to protect invaluable pathological specimens from degradation caused by multiple factors including dust, humidity, temperature fluctuations, and physical damage. The integrated system typically incorporates HEPA filtration and precisely controlled airflow to ensure a contaminant-free environment, thereby preserving the integrity of tissue blocks for future diagnostic procedures, research applications, and legal requirements.
II. Working Principle
The paraffin block cabinet operates on the fundamental principle of controlled vertical laminar airflow. The system initially draws ambient air through pre-filters that effectively remove larger particulate matter, then forces this pre-filtered air through High-Efficiency Particulate Air (HEPA) filters that capture 99.97% of particles as small as 0.3 microns. This purified air subsequently flows downward in a consistent laminar pattern across the stored paraffin blocks, creating a positive pressure environment that actively prevents unfiltered air from entering the storage area. Consequently, the cabinet continuously provides an ISO Class 5 or superior environment that effectively minimizes contamination risks to the stored specimens while maintaining optimal preservation conditions.
III. Key Functions and Roles
Paraffin block cabinets serve multiple critical functions in pathology laboratory operations that extend beyond simple storage:
- Specimen Preservation: Maintain optimal environmental conditions to prevent paraffin block deterioration, melting, or contamination throughout long-term storage
- Organized Storage System: Provide systematic arrangement capabilities for efficient retrieval and comprehensive tracking of tissue blocks
- Cross-Contamination Prevention: Create an effective barrier protection system that significantly minimizes the risk of sample cross-contamination
- Regulatory Compliance: Support adherence to laboratory accreditation standards and legal requirements for specimen retention periods
- Workflow Efficiency: Enable rapid access to archived specimens for additional sectioning, special stains, or advanced molecular studies
- Sample Integrity Maintenance: Ensure the long-term viability of tissue blocks for future diagnostic, research, and legal purposes
IV. Structural Features and Materials
Modern paraffin block cabinets exhibit sophisticated structural characteristics and utilize high-quality materials:
- Cabinet Body Construction: Fabricated from cold-rolled steel with durable epoxy powder coating or stainless steel (304 or 316 grade) for superior corrosion resistance
- Internal Components: Feature modular drawers manufactured from high-impact ABS plastic or specialized anti-static materials
- Advanced Filtration System: Incorporate multi-stage filtration including washable pre-filters and HEPA/ULPA filters with monitoring capabilities
- Precision Airflow System: Utilize centrifugal fans with variable speed control for maintaining consistent laminar airflow patterns
- Integrated Control Panel: Equipped with digital displays for real-time monitoring of airflow velocity, pressure differential, and filter status
- Superior Sealing System: Employ medical-grade silicone gaskets and magnetic seals to maintain cabinet integrity and prevent contamination
- Ergonomic Design: Incorporate smooth-gliding drawers with clear labeling systems and comfortable handle designs
V. Classification and Technical Parameters
Paraffin block cabinets are available in various configurations to meet different laboratory requirements and storage capacities. The following table outlines comprehensive technical specifications across different models:
| Parameter | Standard Model | Advanced Model | High-Capacity Model |
|---|---|---|---|
| Airflow Velocity | 0.35-0.45 m/s | 0.40-0.50 m/s | 0.45-0.55 m/s |
| Motor Power | 150 W | 200 W | 300 W |
| Filtration Level | HEPA H14 (99.997% @ 0.3μm) | HEPA H14 (99.997% @ 0.3μm) | ULPA U15 (99.9995% @ 0.12μm) |
| Noise Level | <62 dB | <58 dB | <65 dB |
| Dimensions (W×D×H) | 900×600×1800 mm | 1200×750×2000 mm | 1500×750×2200 mm |
| Capacity (Blocks) | 3,000-5,000 | 6,000-8,000 | 10,000-12,000 |
| Air Changes/Hour | >300 | >400 | >500 |
| Power Requirements | 110-120V, 60Hz | 220-240V, 50/60Hz | 220-240V, 50/60Hz |
| Weight (Empty) | 180 kg | 250 kg | 320 kg |
VI. Typical Application Industries
Paraffin block cabinets serve essential functions across multiple healthcare and research sectors:
- Hospital Pathology Departments: Primary storage of diagnostic tissue blocks for routine patient care and clinical diagnostics
- Reference Laboratories: Centralized archiving of specimens from multiple healthcare facilities for consolidated management
- Academic Research Institutions: Preservation of tissue samples for longitudinal studies and experimental pathology research
- Forensic Laboratories: Secure storage of evidentiary tissue specimens for legal proceedings and criminal investigations
- Veterinary Pathology Facilities: Comprehensive archiving of animal tissue blocks for diagnostic and research purposes
- Biobanks and Tissue Repositories: Long-term preservation of tissue resources for future research investigations and clinical studies
- Pharmaceutical Companies: Storage of tissue samples from clinical trials for regulatory compliance and additional analysis
VII. Installation and Usage Considerations
Proper installation and operation of paraffin block cabinets require meticulous attention to international standards and best practices:
- Strategic Location Selection: Install in low-traffic areas away from doors, windows, and air conditioning vents to minimize airflow disruption and contamination risk
- Adequate Space Requirements: Maintain minimum clearance of 60-80 cm on all sides for proper airflow circulation and service access
- Controlled Environmental Conditions: Operate within ambient temperature ranges of 15-30°C and relative humidity of 30-70% for optimal performance
- Stable Electrical Requirements: Ensure consistent power supply with proper grounding and surge protection according to manufacturer specifications
- Rigorous Compliance Standards: Adhere to GMP guidelines, ISO 14644 cleanroom standards, and relevant local laboratory regulations for quality assurance
- Comprehensive Operator Training: Implement thorough training programs for laboratory personnel covering proper usage protocols and safety procedures
- Complete Documentation System: Maintain detailed installation, qualification, and operational documentation for audit purposes and quality control
- Regular Performance Verification: Conduct periodic testing to ensure continued compliance with specified performance parameters and standards
VIII. Maintenance and Care Recommendations
Implementing a structured maintenance program ensures optimal performance and extends equipment lifespan while maintaining specimen integrity:
- Daily Maintenance Procedures: Wipe external surfaces with 70% isopropyl alcohol; conduct visual inspections for any operational abnormalities
- Weekly Maintenance Tasks: Thoroughly clean interior surfaces with appropriate disinfectants; systematically check and record pressure differential readings
- Monthly Maintenance Schedule: Test airflow velocity and uniformity using calibrated instruments; verify proper functioning of all indicators and alarm systems
- Quarterly Maintenance Requirements: Replace pre-filters according to manufacturer guidelines; perform comprehensive disinfection of interior spaces
- Annual Maintenance Protocol: Replace HEPA/ULPA filters following established procedures; conduct full performance certification including particle counting and integrity testing
- Preventive Maintenance Strategy: Schedule regular professional servicing according to manufacturer recommendations to prevent unexpected downtime
- Precision Calibration Program: Perform annual calibration of airflow sensors, pressure gauges, and other monitoring instruments using traceable standards
- Comprehensive Documentation Practice: Maintain detailed maintenance logs including specific dates, procedures performed, parts replaced, and service personnel
- Filter Life Monitoring: Implement a filter monitoring system to track usage and plan replacements before efficiency degradation occurs
