In the planning and design of pathology laboratories, fume hoods are essential equipment that ensures both operator safety and a clean laboratory environment. Their proper selection and layout directly affect the efficiency, safety, and compliance of the entire department. This article systematically explains the key considerations for selecting fume hood sizes in pathology labs, from single units to multi-unit configurations, providing professional guidance for lab engineers, hospital equipment managers, and decision-makers.
1. Function and Importance of Fume Hood Selection in Pathology Labs
Pathology labs generate harmful substances such as formaldehyde, xylene, and acidic gases during tissue dissection, specimen staining, and cryosectioning. The core function of a fume hood is to effectively extract these substances and isolate them from the operator, ensuring a safe environment that meets biosafety and occupational health standards.
Fume hood selection affects not only exhaust efficiency but also airflow organization, energy consumption, and operational convenience. Unlike standard chemical lab hoods, pathology fume hoods must accommodate specific scenarios: specimen dissection requires handling large samples and formaldehyde vapor, staining areas involve exposure to organic solvents, and immunohistochemistry may involve high-temperature equipment and precision instruments. Therefore, size selection must balance equipment placement, operator space, and exhaust efficiency.
2. Single-Unit Fume Hood Size and Selection Guidelines
Single-unit fume hoods are the most common configuration in pathology labs, suitable for independent workstations or distributed layouts. Selection should be based on the specific requirements of each functional area.
2.1 Functional Area Size Requirements
- Tissue Dissection Area: Generates the highest concentration of hazardous gases and handles large specimens. Recommended width: 1500–1800 mm. For example, the pathology staining fume hood at Yudu County Women and Children’s Hospital is 1500 × 850 × 2350 mm (L × W × H), accommodating the workspace, sink, and related equipment while providing ample operator space. Large hospitals may consider 1800 mm or wider.
- Staining Area: Uses various organic solvents for routine HE and special staining. Recommended width: 1200–1500 mm. For example, a full-steel fume hood from Guangzhou Kunling Environment Technology, 1800 × 850 × 2350 mm, accommodates staining solutions, slides, and instruments simultaneously.
- Molecular Pathology & Special Testing: Involving PCR or in-situ hybridization, hoods are mainly used for small equipment and sample processing. Compact designs around 1200 mm width ensure stable face velocity while saving lab space.
Depth and height: Standard depth is 850 mm, sufficient for most pathology equipment (tissue processors, staining machines) and providing appropriate front-to-back operation space. Standard height: 2350 mm, compatible with most lab ceilings and providing ample internal space.
Recommended single-unit fume hood sizes by functional area:
| Functional Area | Width (mm) | Depth (mm) | Height (mm) | Key Considerations |
|---|---|---|---|---|
| Tissue Dissection | 1500–1800 | 850 | 2350 | Large specimen handling, multiple operators |
| Staining | 1200–1500 | 850 | 2350 | Chemical usage, equipment placement |
| Special Staining / Immunohistochemistry | 1200–1500 | 850 | 2350 | Precision instruments, corrosion resistance |
| Molecular Pathology | 1200 | 850 | 2350 | Space efficiency, contamination prevention |
2.2 Material and Structural Considerations
Pathology labs require fume hoods to be corrosion-resistant, durable, and easy to clean:

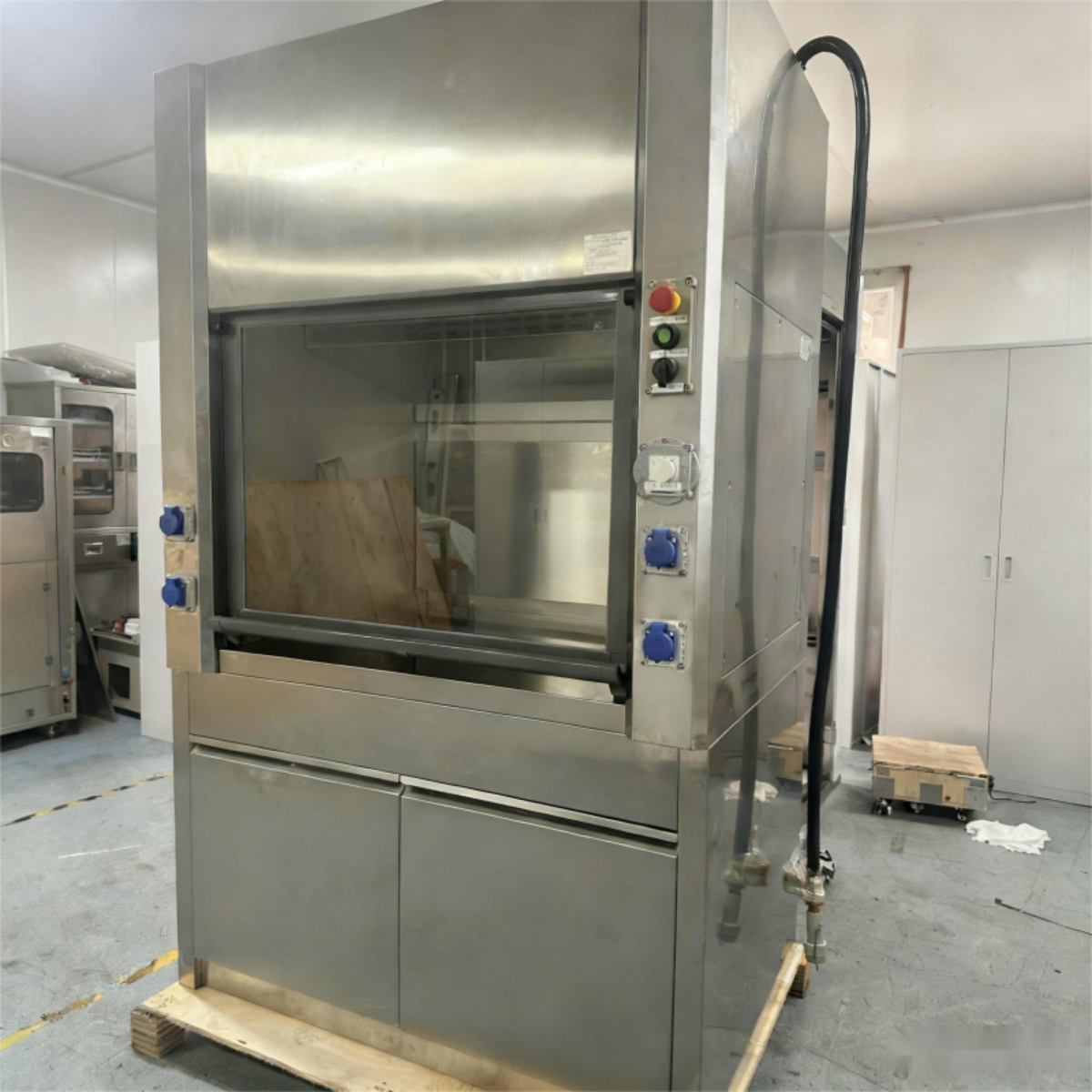

- Cabinet Material: Full-steel hoods offer high strength and are suitable for standard usage. PP (polypropylene) hoods excel in highly corrosive staining areas. Stainless steel hoods are advantageous in areas requiring frequent washing, high-temperature sterilization, or heavy-duty specimen handling.
- Lining & Baffles: Linings should use 6 mm thick anti-corrosion materials. Baffle design ensures uniform airflow without dead zones. For instance, Guangzhou Kunling hoods employ three-piece baffles that separate different gases, enhancing exhaust efficiency.
- Work Surface: Must resist corrosion and impact. Common materials: 12.7 mm chemical-resistant solid-core boards or SUS304 brushed stainless steel, which tolerate high temperatures and are easy to clean.
3. Multi-Unit Fume Hoods: Applications and Customization
Multi-unit hoods are ideal when labs need large equipment or continuous workflows. By connecting multiple units, they provide an extended, continuous workspace, suitable for space-constrained, function-dense labs.
3.1 Size Advantages of Multi-Unit Hoods
By sharing side panels and simplifying structure, multi-unit hoods reduce overall footprint while maintaining operational space. Common sizes: 2400 × 850 × 2350 mm, 3000 × 850 × 2350 mm, and 3600 × 850 × 2350 mm. They provide long work surfaces and space for large instruments.
Main applications:
- Continuous workflow: From specimen reception to initial processing, providing uninterrupted workspace.
- Large equipment placement: Parallel placement of automated staining or cover-slipping machines, facilitating heat dissipation and centralized exhaust.
- Multiple operators: In teaching hospitals or large pathology centers, multiple staff can work simultaneously.
3.2 Customization Considerations
- Structural Stability: Multi-unit designs require reinforced frames for stability.
- Airflow System Design: Can use independent or unified exhaust. Independent systems offer safety but are costlier. Unified systems are economical but require precise calculation of total airflow and duct resistance.
- Functional Zoning: Multi-unit hoods can still be internally partitioned, e.g., one section with sink, another with power and gas outlets, to meet diverse operational needs.
Single-unit vs. multi-unit comparison:
| Feature | Single Unit | Multi-Unit |
|---|---|---|
| Space Utilization | Lower | Higher, shared panels |
| Layout Flexibility | High, can be dispersed | Low, continuous layout required |
| Large Equipment Accommodation | Limited | Excellent |
| Airflow Complexity | Simple | Complex, multi-unit balancing required |
| Initial Cost | Lower | Higher |
| Suitable Scenarios | Distributed functions, ample space | Continuous workflow, compact space |
4. Key Performance and Safety Requirements
Both single and multi-unit hoods must meet performance and safety standards to ensure operational effectiveness.
4.1 Core Performance Parameters
- Face Velocity: Should be stable at 0.3–0.5 m/s. Too low may allow gas escape; too high may cause turbulence. High-quality hoods use VAV systems to maintain stable face velocity.
- Exhaust Volume: Depends on opening area and target face velocity. Standard 1500 mm width hoods require 1500–2000 m³/h. Wider or multi-unit hoods may require 3000–5000 m³/h. Calculation must consider maximum sash opening, duct resistance, and fan performance.
- Noise Control: Lab noise requirements suggest ≤60 dB. Low-noise fans, optimized ducts, and vibration reduction measures are key.
4.2 Safety Alarm Systems
- Face Velocity Alarm: Alerts when below 0.3 m/s or too high.
- Filter Saturation Alarm: For ductless hoods, prompts filter replacement before saturation.
- Sash Position Alarm: Prevents operator from opening sash beyond safe range.
4.3 Electrical and Lighting Requirements
- Power Outlets: Dedicated splash-proof sockets for 220V/380V, with leakage and motor protection.
- Lighting: ≥400 lx inside the hood, LED recommended for high brightness, low heat, and energy efficiency.
5. Installation, Layout, and Maintenance
The effectiveness of a fume hood depends on installation, layout, and ongoing maintenance.
5.1 Installation and Layout
- Location: Away from doors, corridors, and supply vents. Ideally placed against walls with operators facing the lab interior.
- Ducting: Short, straight, minimal elbows; corrosion-resistant materials (PP, FRP, stainless steel). Independent ducts recommended for high-concentration solvents.
- Space Clearance: Side clearance ≥150 mm, rear maintenance space ≥300 mm.
5.2 Maintenance and Monitoring
- Regular Performance Testing: Measure face velocity at multiple sash positions at least every six months using professional anemometers. ASHRAE 110 smoke tests recommended.
- Daily Inspection: Check for abnormal noise, vibration, and smooth sash movement. Inspect linings, baffles, and surfaces for corrosion.
- System Balance: Rebalance when adding or removing hoods to ensure safe face velocity and lab airflow.
6. Conclusion
Selecting the right fume hood size in pathology labs is a complex balance of safety, functionality, space, and cost. From single units to multi-unit configurations, selection should consider workflow, lab space, and safety standards. Proper selection, installation, and maintenance not only protect personnel but also improve efficiency and reduce operating costs.
Early collaboration with fume hood suppliers, such as Guangzhou Kunling Environment, ensures customized solutions tailored to lab requirements. With careful planning, fume hoods play a vital role in safeguarding staff and supporting precision medicine in pathology laboratories.
