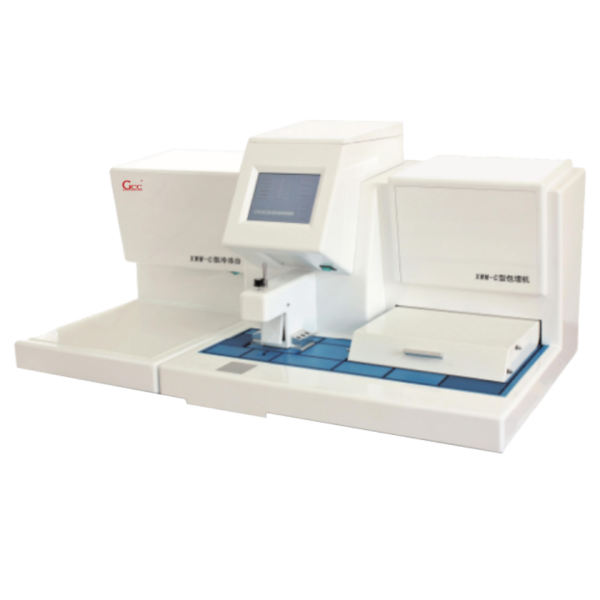

Embedding Station

The Embedding Station is a fully automatic tissue embedding system designed for precise, efficient, and user-friendly operation in histology laboratories. It integrates advanced temperature control, programmable automation, and ergonomic design to ensure optimal paraffin embedding results.
Its paraffin gravity reflux system allows residual wax to automatically return to the storage tank, improving paraffin recycling efficiency and reducing surface residue. The color touch display makes temperature and time adjustments simple and intuitive, helping technicians maintain accuracy and consistency during tissue embedding.

Key Features：

• Automatic Control: Programmable system with preset start and stop times for unattended operation.

• Wax Recycling System: Gravity-based paraffin reflux design for efficient reuse and reduced waste.

• Dual Overheating Protection: Ensures safe operation and prevents damage to paraffin or components.

• Two-Stage Paraffin Filtration: Prevents wax blockage and guarantees smooth embedding flow.

• Large-Capacity Insulation Box: 6.25L insulated chamber capable of holding up to 222 embedding cassettes.

• Independent Cooling Plate: Semiconductor chilling plate provides fast and efficient cooling.

• Color Touch Display: Simple, clear, and easy-to-use interface for precise control.

• Wax Remover Tool: Built-in device for trimming and cleaning embedded wax blocks.

• Adjustable Flow Knob: Fine-tunes paraffin flow rate; optional magnifying glass for detailed observation.

• Integrated Worktable: Streamlined design with uniform heating and easy maintenance.

Technical Specifications：

1. Tissue Embedding Center

• Paraffin Tank Temperature Range: Ambient to 99°C

• Specimen Holder Temperature: Ambient to 85°C

• Control Center Temperature: Ambient to 85°C

• Paraffin Tank Capacity: 8 L

• Weight: 40 kg

• Dimensions: 670 × 680 × 540 mm (L×W×H)

• Voltage: 220V, 50Hz

• Power: 750W

2. Cold Plate

• Working Area Dimensions: 365 × 330 mm

• Voltage: 220V, 50Hz

• Power: 100 VA

• Temperature Range: Ambient to -20°C

• Weight: 25 kg

Ideal Applications：

• Hospitals and Pathology Laboratories – Routine tissue embedding and sample preparation.

• Research Institutions – Histological and cytological studies requiring precision.

• Pharmaceutical & Biotech Companies – Drug testing, safety evaluation, and specimen preparation.

• Educational Facilities – Training for histology and pathology students.
