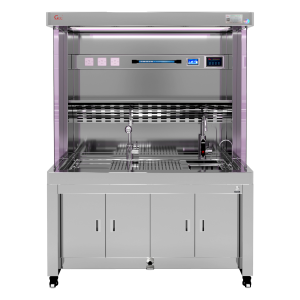

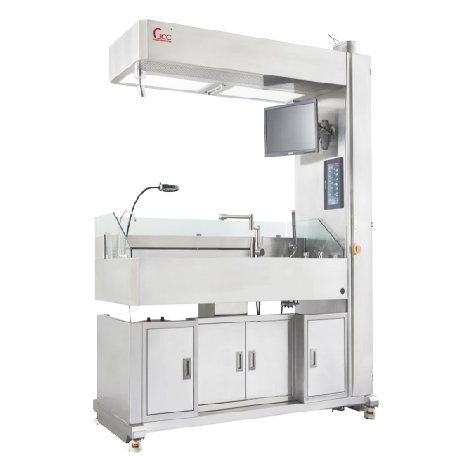

The Grossing Station is a purpose-built 304 stainless steel workstation for pathology labs, designed to ensure safety, accuracy and operator comfort during tissue dissection and specimen processing.From advanced ventilation to UV sterilization and real-time monitoring, this unit supports compliant, high-throughput workflows.
Key Benefits
- Enhanced safety: Dedicated exhaust and formalin control reduce chemical exposure.
- Improved efficiency: Ergonomic adjustable height and integrated utilities speed up processing.
- Easy maintenance: Seamless 304 stainless steel surfaces are corrosion-resistant and simple to clean.
Features
-
Material & build: Main body, doors and inner chamber in 1.0 mm 304 stainless steel for durability and hygiene.
-
Ventilation & air control: Three-stage negative pressure exhaust (≥1500–2000 m³/h) plus fresh-air laminar supply (≥600 m³/h) to form a top-down airflow protecting the breathing zone.
-
Smart control: 10″ touchscreen for one-touch fan control and multi-speed settings.
-
UV sterilization: Built-in UV lamp (≥1300 mW/m²) with programmable timers for post-operation disinfection.
-
Ergonomics & lifting: Electric height adjustment (100/200/300/400 mm options) with remote control to reduce operator strain.
-
Integrated utilities: One-piece welded sink, retractable faucet, side spray, instant hot water faucet, LED panel lighting, laser-etched measuring board, waterproof power sockets.
-
Monitoring: Real-time readouts for formaldehyde, PM2.5, TVOC, air pressure and airflow.
-
Accessories: Bone tissue crusher, waterproof sockets, measuring board; exhaust fan/ducting quoted separately.
Technical Specifications
-
Material: 304 stainless steel, thickness ≥ 1.0 mm (main body, doors, inner chamber).
-
Door: Double-layer steel panels with detachable hinges.
-
Handle: 304 stainless steel.
-
Front panel: Thick tempered glass.
-
Design: Open-front, backless structure.
-
Sink: One-piece welded stainless steel sink with rounded corners and anti-drain slope.
-
Work surface: Removable perforated stainless steel plate, ≥2 mm thick.
-
Cleaning system: Retractable faucet, side spray, instant hot water faucet.
-
Touch screen: 10-inch control panel with adjustable fan speed.
-
Lighting: Built-in LED panel ×1.
-
UV lamp: ≥1300 mW/m², timed sterilization (10s/20s/30s).
-
Exhaust: Three-level negative pressure, 1500–2000 m³/h, airflow ≥0.8 m/s.
-
Fresh air: ≥600 m³/h with perforated plate diffusion.
-
Crusher: Bone tissue crusher ×1.
-
Sockets: 3 × waterproof 5-hole sockets.
-
Measuring board: Laser-etched waterproof board ×1.
-
Lifting range: Optional 100 / 200 / 300 / 400 mm, remote control.
-
Formalin system: Dual-mode fill/infuse, infrared sensor, level display, alarms.
-
Monitoring: Formaldehyde, PM2.5, TVOC, air pressure, airflow monitoring.
-
Monitor: ≥22″ HD (1920×1080).
-
Surface: Seamless, corrosion/UV/acid/alkali resistant, non-toxic, flame-retardant.
-
Weight: Approx. 302 kg.
-
Excluded: Exhaust fan, ducts, and installation accessories (quoted separately).
