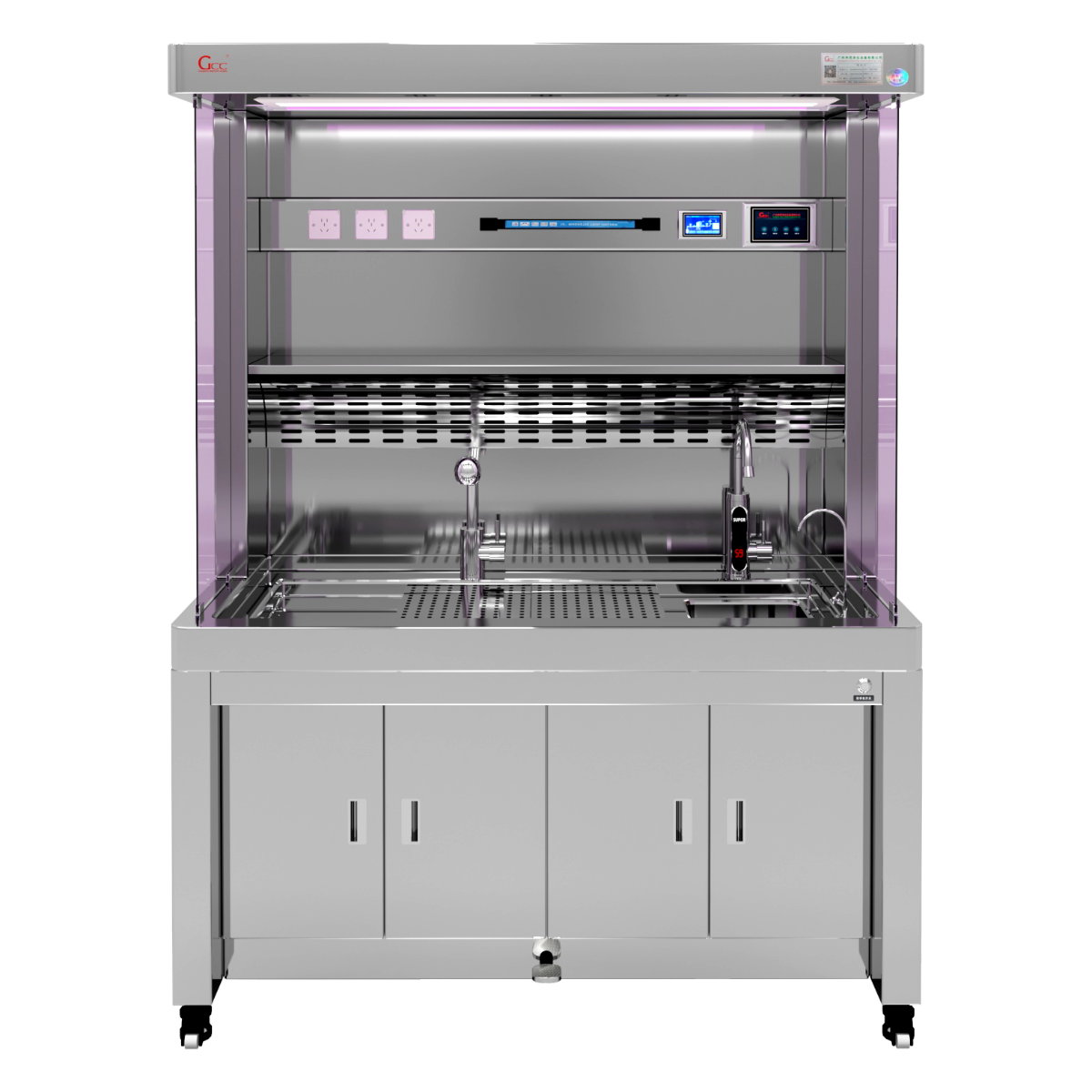

Grossing Station GCC-QCTJ-1500

This Grossing Station provides a safe, ergonomic, and efficient workspace for tissue dissection and specimen processing in pathology laboratories. Constructed entirely from 304 stainless steel, it ensures excellent corrosion resistance, durability, and easy cleaning.

Featuring dual-side transparent tempered glass windows, an open-top design with exhaust, an integrated one-piece sink, removable perforated stainless steel work surface, touchscreen control, LED lighting, UV sterilization, down-draft ventilation, a fresh-air laminar system, a bone tissue crusher, and a formalin filling system, it creates a clean, safe, and highly efficient environment for laboratory operations. The seamless, non-toxic, and flame-retardant surface meets strict laboratory hygiene standards.

Key Features

1. Material & Construction: 304 stainless steel, 1.0 mm thick for main body, doors, and inner chamber

2. Door & Handles: Double-layer steel doors with detachable hinges; 304 stainless steel handles

3. Side Windows: Transparent tempered glass panels, innovative and ergonomic

4. Design: Open-top, no sliding glass, no partitions, built-in exhaust

5. Integrated Sink: One-piece welded stainless steel with rounded corners and flow-guiding design

6. Work Surface: Removable perforated stainless steel plate (≥2 mm), precision-punched, smooth edges

7. Cleaning System: Retractable faucet, side spray, and instant hot water faucet

8. Control System: 4.3-inch touchscreen with one-touch fan start/stop and adjustable low/medium/high fan speeds

9. Lighting: Built-in LED flat panel ×1

10. UV Sterilization: Lamp ≥1300 mW/m² with timer (10s/20s/30s)

11. Exhaust System: Down-draft water-air separation, three adjustable levels, negative-pressure exhaust, airflow 1500–2000 m³/h, ≥0.8 m/s

12. Fresh-Air Laminar Flow: ≥600 m³/h, delivering top-down airflow to operator breathing zone

13. Bone Tissue Crusher: Fast and easy-to-clean

14. Auxiliary Accessories: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3

15. Formalin Filling System: Dual-mode filling/infusion with infrared sensor, level display, and alarms

16. Surface Properties: Seamless, corrosion- and UV-resistant, acid/alkali-proof, non-toxic, flame-retardant

17. Weight: Approx. 302 kg

18. Excluded Items: Exhaust fan, ducts, and installation accessories (quoted separately)

Technical Specifications

1. Material: 304 stainless steel, 1.0 mm thick

2. Door Structure: Double-layer steel doors with detachable hinges

3. Handles: 304 stainless steel

4. Side Windows: Transparent tempered glass

5. Design: Open-top, no sliding glass, cabinet without partitions, built-in exhaust

6. Sink: One-piece welded stainless steel, rounded corners, flow-guiding design

7. Work Surface: Removable perforated stainless steel plate (≥2 mm), precision-punched

8. Cleaning System: Retractable faucet, side spray, instant hot water faucet

9. Control Panel: 4.3-inch touchscreen, adjustable fan speed, one-touch fan control

10. Lighting: Built-in LED flat panel ×1

11. UV Sterilization: Lamp ≥1300 mW/m², timer 10s/20s/30s

12. Exhaust System: Down-draft, water-air separation, three-level adjustable, airflow 1500–2000 m³/h, ≥0.8 m/s

13. Fresh-Air Laminar Flow: ≥600 m³/h, top-down airflow to operator breathing zone

14. Bone Tissue Crusher: ×1, easy-to-clean and disinfectable

15. Auxiliary Equipment: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3

16. Formalin System: Dual-mode filling/infusion with infrared sensing, level display, and alarms

17. Surface Properties: Seamless, corrosion- and UV-resistant, acid/alkali-proof, non-toxic, flame-retardant

18. Weight: Approx. 302 kg

19. Excluded Items: Exhaust fan, ducts, and installation accessories (quoted separately)
