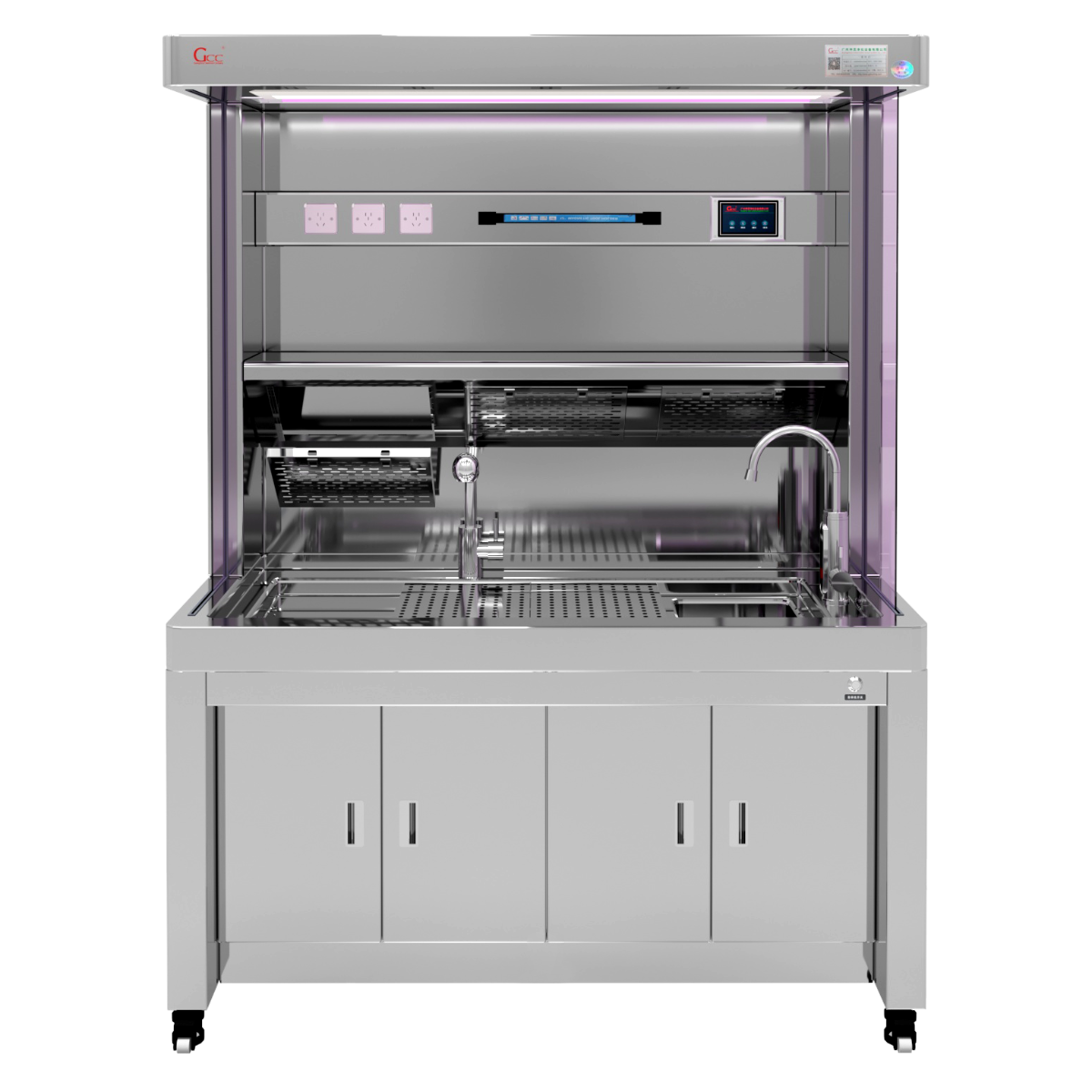

The advanced Stainless Steel Grossing Station is designed for modern pathology and histology laboratories, combining functionality, safety, and ergonomic design.
Constructed entirely from 1.0 mm thick 304 stainless steel, it ensures exceptional durability, corrosion resistance, and easy cleaning. The workstation integrates powerful ventilation and fresh-air laminar flow systems, effectively removing formalin vapors and maintaining a safe and sterile working environment.
Featuring a smooth, rounded-edge work surface with a one-piece deep sink and precision-perforated dissection board, the unit supports efficient tissue processing and simple maintenance.
Equipped with an intuitive 4.3-inch touch control panel, LED lighting, UV sterilization, and water-efficient cleaning system, this grossing station provides both operator comfort and laboratory safety.
Key Features
-
Premium 304 Stainless Steel Construction:
Full 1.0 mm thick body, door, and inner chamber with double-layer door panels and removable hinges. -
Open-Top Design with Dual Glass Windows:
Transparent tempered glass side panels provide visibility and accessibility for collaborative work. -
Integrated Sink & Perforated Work Surface:
One-piece welded sink and 2 mm perforated board with rounded corners ensure hygiene and smooth cleaning. -
Adjustable Airflow & Down-Draft Ventilation:
Three-speed exhaust system (1500–2000 m³/h) effectively removes formalin vapors and maintains negative pressure. -
Laminar Fresh-Air System:
Supplies ≥600 m³/h of clean air to the operator’s breathing zone, forming an “upper supply, lower exhaust” airflow pattern. -
Smart Touch Control Panel:
4.3-inch touchscreen with one-touch fan control, adjustable airflow speeds, and LED lighting management. -
UV Sterilization & LED Illumination:
Built-in UV lamp (≥1300 mW/m²) with timer options (10/20/30s) and embedded LED flat light for a bright, sterile workspace. -
Efficient Cleaning System:
Extendable faucet and instant water heater for complete surface rinsing. -
Bone Tissue Grinder:
Integrated stainless-steel grinding device ensures fast, safe, and hygienic sample preparation. -
Auxiliary Accessories:
Includes magnetic strip, laser-marked measuring board, and three waterproof power sockets.
Technical Specifications
-
Material: 304 stainless steel, 1.0 mm thickness (main body, doors, inner chamber)
-
Door Structure: Double-layer steel doors with detachable hinges
-
Handles: 304 stainless steel, durable and elegant
-
Side Windows: Movable tempered glass panels for dual-side operation
-
Design: Open-top design, no rear panel, with built-in exhaust
-
Sink: One-piece welded stainless steel sink, rounded corners, anti-drain slope
-
Work Surface: Removable perforated stainless steel plate, ≥2 mm thick, precision punched, smooth rounded edges
-
Cleaning System: Extendable faucet, side spray system, instant hot water faucet
-
Control Panel: 4.3-inch touchscreen, one-touch fan control, adjustable low/medium/high fan speeds
-
Lighting: Built-in LED flat panel
-
UV Sterilization: Lamp ≥1300 mW/m², timer selectable (10s/20s/30s)
-
Exhaust System: Three-level negative pressure down-draft, airflow ≥1500–2000 m³/h, ≥0.8 m/s
-
Fresh-Air Laminar Flow: ≥600 m³/h, perforated plate delivery to operator breathing zone
-
Bone Tissue Grinder: Integrated, easy-to-clean, disinfectable
-
Auxiliary Equipment: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3
-
Surface Properties: Seamless, corrosion-resistant, UV-resistant, acid/alkali proof, non-toxic, flame-retardant
-
Weight: Approx. 302 kg
-
Excluded Items: Exhaust fan, ducts, and installation accessories (quoted separately)
