The GCC-QCTT Series Height-Adjustable Grossing Station combines premium 304 stainless steel construction with an ergonomic electric height adjustment system. The sliding glass front panel provides additional splash protection while maintaining full visibility during dissection procedures.

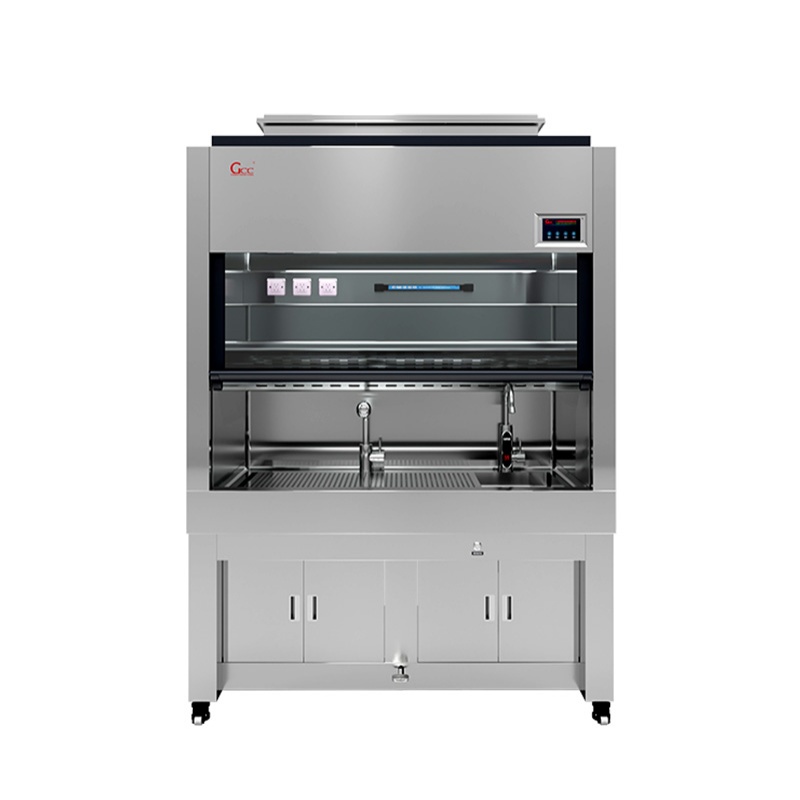

Model Overview: GCC-QCTT-2000
With a width of 2000mm, this model is optimized for high-throughput labs requiring double-person ergonomic workstations. The largest height-adjustable model, ideal for two operators working simultaneously.
Key Features (All QCTT Models)
- Electric Height Adjustment: Adjustable range 700–900mm to accommodate operators of different heights, reducing fatigue during prolonged use
- Sliding Glass Front Panel: Provides splash protection while maintaining visibility and easy access
- 304 Stainless Steel Body: Full 1.0mm thickness, corrosion-resistant and easy to clean
- Down-Draft Exhaust System: Three-speed ventilation (1500–2000 m³/h) effectively removes formalin vapors
- Fresh Air Laminar Flow: ≥600 m³/h clean air supply to breathing zone
- UV Sterilization Lamp: ≥1300 mW/m² with selectable timer
- Bone Tissue Grinder: Integrated for safe bone sample processing
- Touchscreen Control: 4.3-inch smart panel for fan speed, lighting, and UV control
Technical Specifications (GCC-QCTT-2000)
- Overall Dimensions: 2000×800×2000mm (W×D×H)
- Height Adjustment: 700–900mm electric
- Gross Weight: ~360 kg
- Material: 304 stainless steel, 1.0mm thickness
- Exhaust Airflow: 1500–2000 m³/h
| Model Size | Dimensions (W×D×H) | Recommended For | Workstation Type |
|---|---|---|---|
| 1500mm | 1500×800×2000mm | Single-user labs, small pathology departments | Single Person |
| 1800mm | 1800×800×2000mm | Mid-size labs, regular throughput | Single/Double Person |
| 2000mm | 2000×800×2000mm | High-throughput labs, multiple users | Double Person |
| 2200mm | 2200×800×2200mm | Large-scale pathology departments, maximum capacity | Double Person |
