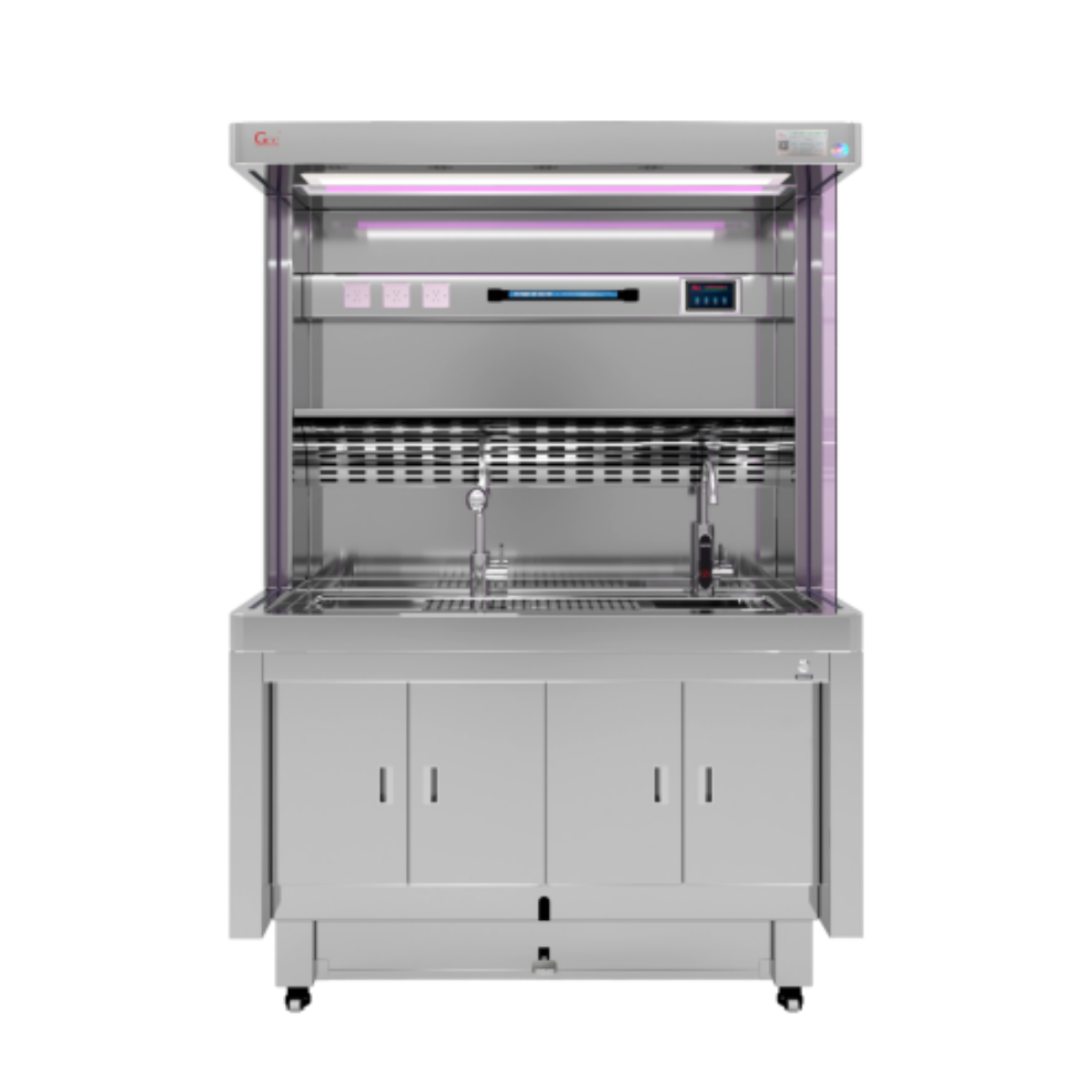

Grossing Station GCC-SJQCT-1500

This advanced Grossing Station is designed for safe, ergonomic, and efficient tissue processing in pathology laboratories. Constructed entirely from 304 stainless steel, it offers excellent corrosion resistance, durability, and easy cleaning.

Equipped with dual-side transparent tempered glass windows, open-top design with exhaust, an integrated one-piece sink, removable perforated stainless steel work surface, touchscreen control, LED lighting, UV sterilization, down-draft ventilation, fresh-air laminar system, bone tissue crusher, adjustable-height lifting system, and formalin filling system, it ensures a clean, safe, and highly efficient workflow while minimizing occupational strain.

Key Features

• Material & Construction: 304 stainless steel, 1.0 mm thick for body, doors, and inner chamber

• Door & Handles: Double-layer steel doors with detachable hinges; 304 stainless steel handles

• Side Windows: Transparent tempered glass, innovative and ergonomic

• Design: Open-top, no sliding glass, no partitions, built-in exhaust

• Integrated Sink: One-piece welded stainless steel, rounded corners, flow-guiding design

• Work Surface: Removable perforated stainless steel plate (≥2 mm), precision-punched, smooth and easy to clean

• Cleaning System: Retractable faucet, side spray, instant hot water faucet

• Control System: 7-inch touchscreen with one-touch fan control, adjustable low/medium/high fan speeds

• Lighting: Built-in LED flat panel ×1

• UV Sterilization: Lamp ≥1300 mW/m², timer 10s/20s/30s

• Exhaust System: Down-draft water-air separation, three adjustable levels, airflow 1500–2000 m³/h, ≥0.8 m/s

• Fresh-Air Laminar Flow: ≥600 m³/h, delivering top-down airflow to operator breathing zone

• Bone Tissue Crusher: Fast and easy-to-clean

• Auxiliary Accessories: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3

• Height-Adjustable System: Lifting range ≥100-200-300-400 mm, wireless remote control for ergonomic operation

• Formalin Filling System: Dual-mode filling/infusion, infrared sensor, level display, low-level alarm

• Surface Properties: Seamless, corrosion- and UV-resistant, acid/alkali-proof, non-toxic, flame-retardant

• Weight: Approx. 302 kg

• Excluded Items: Exhaust fan, ducts, and installation accessories (quoted separately)

Technical Specifications

• Material: 304 stainless steel, 1.0 mm thickness

• Door Structure: Double-layer steel doors with detachable hinges

• Handles: 304 stainless steel

• Side Windows: Transparent tempered glass

• Design: Open-top, no sliding glass, cabinet without partitions, built-in exhaust

• Sink: One-piece welded stainless steel with rounded corners and flow-guiding design

• Work Surface: Removable perforated stainless steel plate, ≥2 mm thickness, smooth and easy to clean

• Cleaning System: Retractable faucet, side spray, instant hot water faucet

• Control Panel: 7-inch touchscreen, one-touch fan control, low/medium/high speed selection

• Lighting: Built-in LED flat panel ×1

• UV Sterilization: ≥1300 mW/m², timer 10s/20s/30s

• Exhaust System: Down-draft water-air separation, three-level adjustable, airflow 1500–2000 m³/h, ≥0.8 m/s

• Fresh-Air Laminar Flow: ≥600 m³/h, top-down airflow to operator breathing zone

• Bone Tissue Crusher: ×1, easy-to-clean

• Auxiliary Equipment: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3

• Lifting System: Adjustable height ≥100-200-300-400 mm, wireless remote control

• Formalin System: Dual-mode filling/infusion, infrared sensor, level display, low-level alarm

• Surface Properties: Seamless, corrosion- and UV-resistant, acid/alkali-proof, non-toxic, flame-retardant

• Weight: Approx. 302 kg

• Excluded Items: Exhaust fan, ducts, installation accessories (quoted separately)
