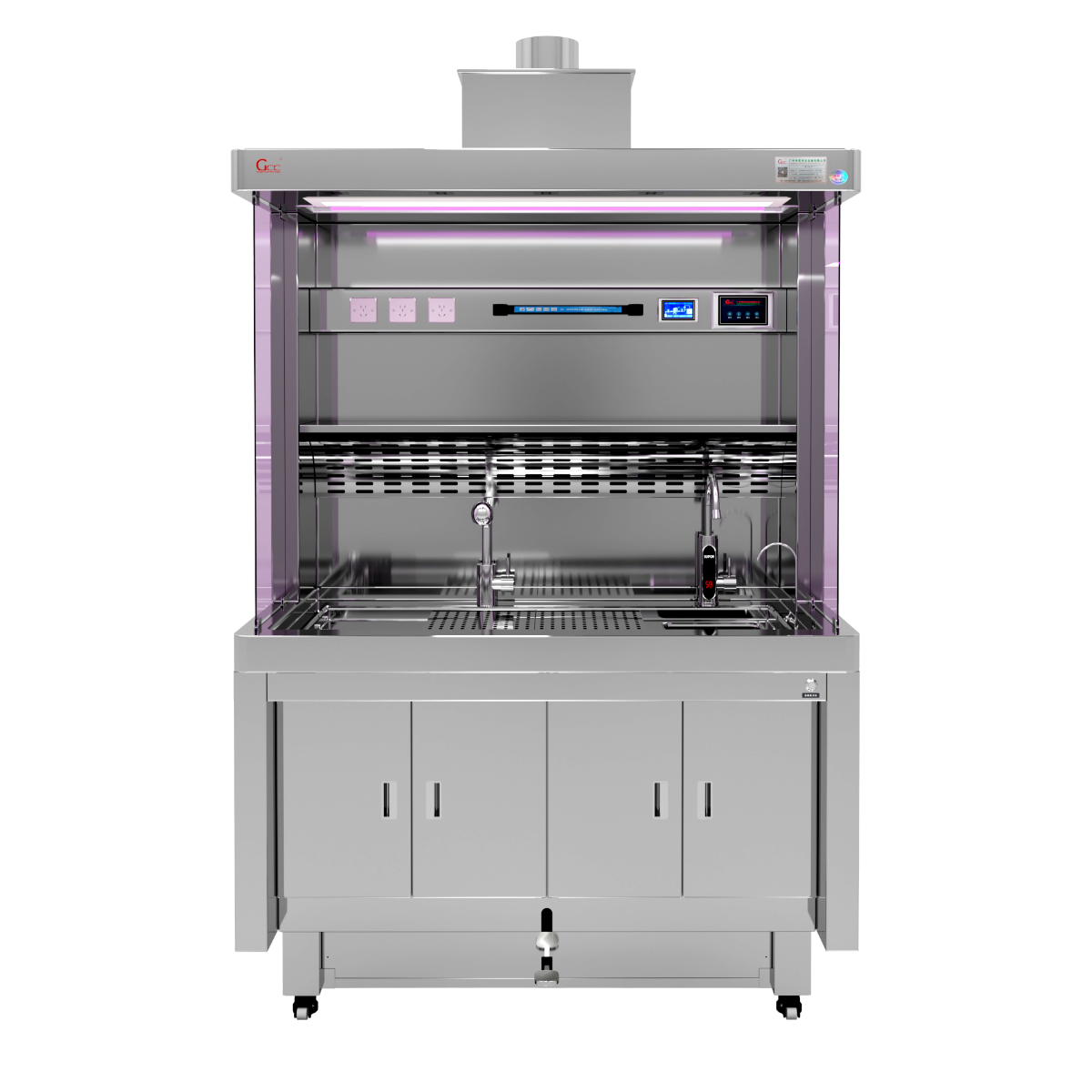

Grossing Station GCC-SJQCTJ-G15

This Grossing Station offers a safe, ergonomic, and highly efficient workspace for tissue dissection and specimen processing in pathology laboratories. Constructed entirely from 304 stainless steel, it ensures excellent corrosion resistance, durability, and easy cleaning.

Equipped with dual-side transparent tempered glass windows, an open-top design with exhaust, an integrated one-piece sink, removable perforated stainless steel work surface, smart touchscreen control, LED lighting, UV sterilization, down-draft ventilation, a fresh-air laminar system, and a bone tissue crusher, this Grossing Station provides a clean and safe working environment. Its height-adjustable lifting system and remote control enhance operator comfort and efficiency. The seamless, non-toxic, and flame-retardant surface meets strict laboratory safety and hygiene standards.

Key Features

• Material & Construction: 304 stainless steel (1.0 mm thickness) for main body, doors, and inner chamber

• Door & Handles: Double-layer steel doors with detachable hinges; 304 stainless steel handles

• Side Windows: Transparent tempered glass panels, novel and ergonomic design

• Design: Open-top, no sliding glass, cabinet without partitions, built-in exhaust

• Integrated Sink: One-piece welded stainless steel sink with rounded corners and flow-guiding design

• Work Surface: Removable perforated stainless steel plate (≥2 mm), precision-punched, smooth edges

• Cleaning System: Retractable faucet, side spray, and instant hot water faucet

• Control System: 4.3-inch touchscreen with one-touch fan start/stop and adjustable low/medium/high fan speeds

• Lighting: Built-in LED flat panel

• UV Sterilization: Lamp ≥1300 mW/m² with timer (10s/20s/30s)

• Exhaust System: Down-draft water-air separation, three adjustable levels, negative-pressure exhaust, airflow 1500–2000 m³/h, ≥0.8 m/s

• Fresh-Air Laminar Flow: ≥600 m³/h, delivering top-down airflow to operator breathing zone

• Bone Tissue Crusher: Fast and easy-to-clean

• Auxiliary Accessories: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3

• Height-Adjustable Lifting System: 100–400 mm range, wireless remote control

• Formalin Filling System: Dual-mode filling/infusion with infrared sensor, level display, and alarms

• Monitoring System: Real-time display of formaldehyde, PM2.5, air pressure, airflow, wind speed, TVOC

• Display Screen: ≥22-inch, 1920×1080 resolution

• Surface Properties: Seamless, corrosion- and UV-resistant, acid/alkali-proof, non-toxic, flame-retardant, eco-friendly

• Weight: Approx. 302 kg

• Excluded Items: Exhaust fan, ducts, and installation accessories (quoted separately)

Technical Specifications

• Material: 304 stainless steel, 1.0 mm thickness

• Door Structure: Double-layer steel doors with detachable hinges

• Handles: 304 stainless steel

• Side Windows: Transparent tempered glass

• Design: Open-top, no sliding glass, no cabinet partitions, built-in exhaust

• Sink: One-piece welded stainless steel, rounded corners, anti-drain slope

• Work Surface: Removable perforated stainless steel plate (≥2 mm), precision holes

• Cleaning System: Retractable faucet, side spray, instant hot water faucet

• Control Panel: 4.3-inch touchscreen, adjustable fan speed, one-touch fan control

• Lighting: Built-in LED flat panel ×1

• UV Sterilization: Lamp ≥1300 mW/m², timed 10s/20s/30s

• Exhaust System: Down-draft, water-air separation, three-level adjustable, airflow 1500–2000 m³/h, ≥0.8 m/s

• Fresh-Air Laminar Flow: ≥600 m³/h, top-down airflow to operator breathing zone

• Bone Tissue Crusher: ×1, easy-to-clean and disinfectable

• Auxiliary Equipment: Magnetic strip ×1, laser-marked measuring board ×1, waterproof five-hole sockets ×3

• Height-Adjustable Lifting Range: 100 / 200 / 300 / 400 mm, wireless remote

• Formalin System: Dual-mode filling/infusion with infrared sensing, level display, and alarms

• Monitoring Parameters: Formaldehyde, PM2.5, TVOC, air pressure, airflow, wind speed

• Monitor: ≥22-inch, 1920×1080 resolution

• Surface Properties: Seamless, corrosion- and UV-resistant, acid/alkali-proof, non-toxic, flame-retardant

• Weight: Approx. 302 kg

• Excluded Items: Exhaust fan, ducts, and installation accessories (quoted separately)
