In busy pathology laboratories, using equipment designed two decades ago often creates hidden inefficiencies throughout the workday. Poorly positioned mechanical switches, separate controls for lighting and ventilation systems, and fixed-height workstations that cannot accommodate different operators are common issues that staff gradually adapt to rather than solve.
Over time, workflow efficiency declines, cleaning procedures may be simplified, and operators develop habits that work around equipment limitations instead of benefiting from improved workstation design.
Modern pathology grossing stations address these challenges through integrated control systems, optimized workstation layouts, and intelligent safety features. This article explains how these functions improve daily pathology workflows, why certain technical specifications matter, and what buyers should verify before making a purchasing decision.
What Does a Touchscreen Control Panel Actually Control?
The value of a touchscreen interface is not the screen itself, but its ability to centralize all workstation functions into a single, glove-friendly control point.
On traditional pathology grossing stations, exhaust fans, lighting, and sterilization systems are often controlled by separate mechanical switches located in different areas of the workstation. During specimen processing, operators must repeatedly move away from the work area to adjust settings, reducing efficiency and workflow continuity.

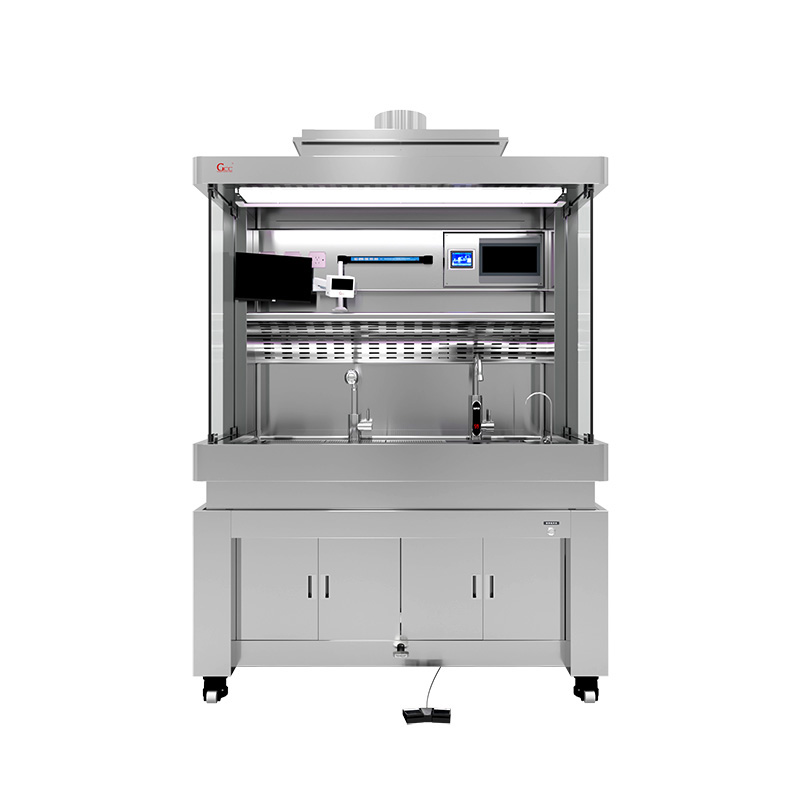

The GCC-QCT Pathology Grossing Station features a 4.3-inch intelligent touchscreen control system that manages all major workstation functions from a single interface.
Exhaust Ventilation Control
- One-touch start and stop for the exhaust fan
- No need to locate separate power switches
Adjustable Fan Speed
- Three selectable speed levels: Low, Medium, and High
- Increased airflow for large specimen grossing
- Reduced noise and energy consumption during routine biopsy processing
UV Sterilization Timer
- Sterilization duration set directly on the touchscreen
- Preset timing options such as 10, 20, and 30 seconds
- No external timer required
LED Lighting Control
- Integrated brightness adjustment
- All settings managed through a single control interface
For university pathology teaching laboratories and hospital pathology departments operating multiple shifts, centralized control systems also simplify workstation handovers. Operators can quickly verify equipment status and avoid inheriting ventilation or sterilization settings from previous users.
UV Sterilization Timer: Why Irradiance Matters
Many pathology grossing stations are equipped with UV sterilization lamps. However, the effectiveness of a UV system depends not on the presence of a UV lamp, but on its UV irradiance.
Irradiance is typically measured in:
mW/m² (milliwatts per square meter)
Studies indicate that effective UV-C surface sterilization generally requires:
- UV-C irradiance ≥ 1,000 mW/m²
- Lower irradiance levels require significantly longer exposure times
- Insufficient irradiance may prevent effective sterilization within practical workflow intervals
GCC-QCT UV Sterilization Specifications
UV-C Irradiance
- ≥ 1,300 mW/m² measured at the work surface
- Exceeds commonly accepted sterilization thresholds
Intelligent Timer Control
- Sterilization duration set directly via the touchscreen
- No separate controller required
Full-Coverage Design
- UV lamp positioned above the work area
- Covers the entire grossing surface
Primary Benefits
- Reduces cross-contamination between specimens
- Minimizes residual microbial contamination risks
For hospital pathology departments and university laboratories, simply stating that a station includes a UV lamp is not sufficient. Buyers should request:
- UV irradiance testing reports
- Actual performance measurements
- Relevant certification documents
Workflow Comparison: Conventional vs Smart Grossing Station
| Workflow Step | Conventional Grossing Station | GCC-QCT Smart Grossing Station |
|---|---|---|
| Start of Work | Turn on fan and lighting separately | One-touch startup via touchscreen |
| Ventilation Adjustment | Adjust using separate controller | Change fan speed directly on screen |
| End of Session | Set UV timer manually | Start UV cycle with one touch |
| UV Cycle Completion | Manual shutdown required | Automatic stop function |
| Workstation Cleaning | More difficult-to-clean areas | Full coverage with retractable faucet and side spray gun |
Although each grossing session may save only:
3–7 minutes
the cumulative efficiency gains become substantial in pathology departments performing four to six grossing sessions per day.
More importantly, integrated controls help:
- Reduce missed sterilization procedures
- Prevent operators from forgetting to activate ventilation systems
- Minimize human error
GCC-QCT Pathology Grossing Station Specifications
| Specification | Details |
| Construction Material | Full SUS304 Stainless Steel |
| Sheet Thickness | 1.0 mm |
| Control System | 4.3-inch Touchscreen |
| Available Sizes | 1500 / 1800 / 2000 / 2200 mm |
| Exhaust Capacity | 1500–2000 m³/h |
| Face Velocity | ≥ 0.8 m/s |
| Fresh Air Supply | ≥ 600 m³/h Laminar Airflow |
| UV Sterilization | ≥ 1300 mW/m² |
| LED Lighting | Adjustable Brightness |
| Sink Design | One-Piece Welded with Rounded Corners |
| Work Surface | ≥ 2 mm Removable Perforated Plate |
| Cleaning System | Retractable Faucet + Side Spray Gun + Instant Hot Water |
| Side Panels | Tempered Glass |
| Storage Cabinet | Lockable SUS304 Cabinet |
| Standard Accessories | Magnetic Tool Rack, Laser-Etched Measuring Board, Bone Crusher, Waterproof Socket |
| Compliance Standards | GMP, ISO 15189 |
Four Questions to Ask Before Purchasing
1. What Is the UV Irradiance Rating?
Specify:
≥ 1300 mW/m²
rather than accepting a simple statement that a UV lamp is included.
2. What Are the Exhaust Volume and Face Velocity?
Recommended minimum requirements:
- Exhaust volume ≥ 1500 m³/h
- Face velocity ≥ 0.8 m/s
These are occupational safety indicators rather than marketing specifications.
3. Does the Station Include a Fresh Air Supply System?
Confirm whether the workstation provides:
- Fresh airflow to the operator breathing zone
- Or only rear exhaust extraction
4. Are All Accessories Included?
Confirm whether the following are standard equipment:
- Bone crusher
- Measuring board
- Magnetic tool rack
- Waterproof electrical sockets
Some manufacturers charge separately for these accessories.
GCC Pathology Grossing Station Series
The GCC-QCT Pathology Grossing Station is available in four standard sizes:
- 1500 mm
- 1800 mm
- 2000 mm
- 2200 mm
All models are supplied with:
- SUS304 stainless steel construction
- 4.3-inch touchscreen control system
- Dual-circulation ventilation system
- UV sterilization system rated ≥ 1300 mW/m²
- Integrated LED lighting
- Complete accessory package
Suitable applications include:
- Hospital pathology departments
- Medical university teaching laboratories
- Independent pathology diagnostic centers
- Research pathology laboratories
If you are planning a new pathology laboratory, upgrading existing grossing equipment, or preparing specifications for a hospital procurement project, GCC Pathology can provide complete technical documentation, compliance certificates, and customized quotations.
