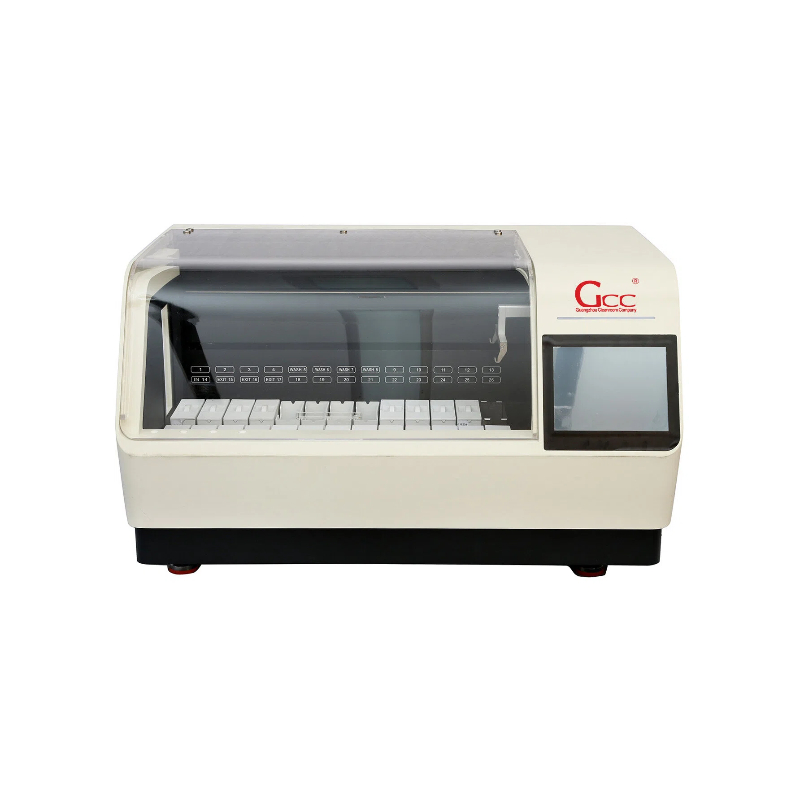

Fully Automatic Stainer

The GCCS-C Fully Automatic Stainer is an intelligent slide staining system designed for pathology, histology, and clinical laboratories. Featuring a 10.4-inch color touch screen, high-throughput staining capacity, and intelligent reagent management, the system delivers efficient, accurate, and consistent slide staining performance. Its fully enclosed structure and integrated waste gas monitoring system provide a safer laboratory environment while supporting seamless integration with automatic coverslipper systems.

Key Features:

• 10.4-inch color LCD touch screen with intuitive Chinese operating system
• Built-in quality control module with reagent management and operation history records
• Three-color reagent status reminder system (green, yellow, red)
• Shortcut program settings for quick workflow access (K1–K5)
• Large-capacity reagent tank and slide loading system
• Supports Pap staining and HE frozen section staining
• Simultaneous operation of up to 11 different staining programs
• High-throughput performance up to 360 slides per hour
• Fully enclosed staining system for safer laboratory operation
• Dual waste gas concentration monitoring sensors before and after filtration
• Adjustable concentration monitoring range from 0–100 ppm
• Can be integrated with coverslipper systems for fully automated staining & coverslipping workflow

Technical Parameters:

• Model: GCCS-C
• Display: 10.4-inch Color LCD Touch Screen
• Operating System: Full Chinese Interface
• Reagent Tank Capacity: 480 ±20 ml
• Slide Rack Capacity: 30 slides per rack
• Staining Types: Pap Staining, HE Frozen Section Staining
• Simultaneous Programs: Up to 11 programs
• Processing Capacity: Up to 360 slides/hour
• Waste Gas Monitoring Range: 0–100 ppm adjustable
• Monitoring Sensors: Dual sensors before and after filtration
• System Type: Fully Enclosed Automatic Stainer
• Integration Function: Compatible with automatic coverslipper systems

Applications:

• Pathology Laboratories
• Histology Laboratories
• Hospital Laboratories
• Clinical Diagnostic Centers
• Medical Research Institutions
• Biotechnology Laboratories
• Educational & Teaching Laboratories
