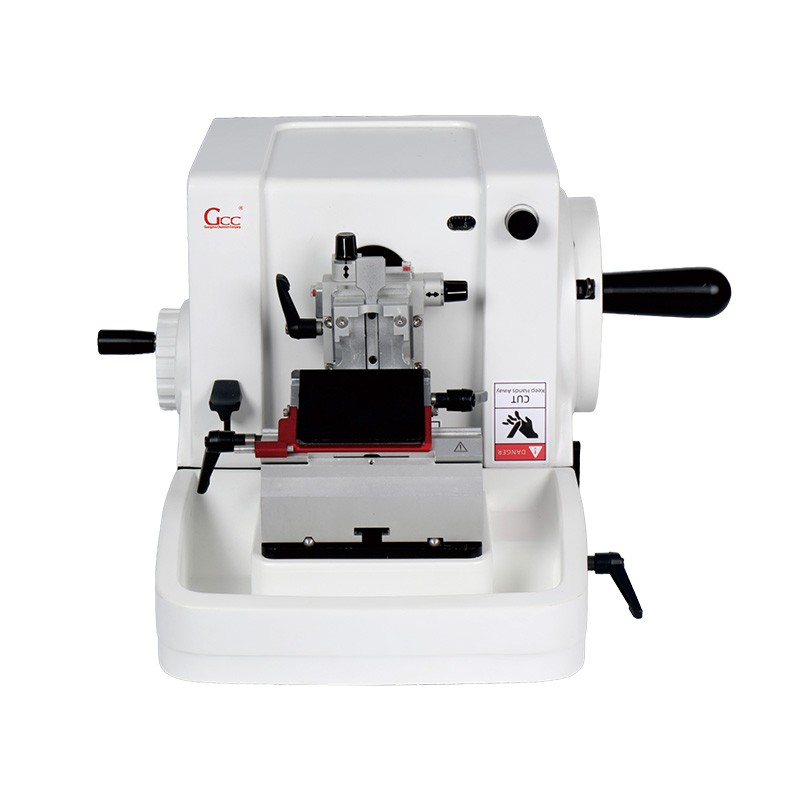

Manual Paraffin Microtome GCC-QPJ-3325

The GCC-QPJ-3325 Manual Paraffin Microtome is designed for precise and reliable tissue sectioning in pathology, histology, and research laboratories. Featuring an ergonomic design, cross-roller guide rail system, and high-precision micrometer feeding mechanism, it delivers smooth operation and consistent section quality for routine laboratory applications.

With a lubrication-free maintenance design, dual handwheel locking system, and high-performance disposable blade holder, the GCC-QPJ-3325 ensures safe operation, long-term reliability, and efficient specimen preparation. Its rapid trimming function and adjustable section thickness make it an ideal solution for pathology laboratories, medical universities, biomedical research institutes, and pharmaceutical research facilities requiring accurate paraffin tissue sectioning.

Key Features:

• Ergonomic Design for Comfortable Operation– Streamlined housing design with integrated storage space for blades, paraffin blocks, and slides.
• Cross-Roller Guide Rail System– Newly designed cross-roller guide rails ensure stable movement and smooth sectioning performance.
• Micrometer Feeding System– Precision feeding mechanism provides accurate specimen advancement and consistent section quality.
• Maintenance-Free Design– Lubrication-free operation reduces maintenance requirements and improves long-term reliability.
• Dual Handwheel Locking System– Features 360° arbitrary locking and top dead center locking for enhanced operational safety.
• High-Performance Disposable Blade Holder– Optimized blade holder design delivers excellent sectioning results.
• Lateral Blade Adjustment Function– Enables full utilization of the blade edge, extending blade service life.
• Rapid Trimming Function– Two fixed trimming settings (10 μm and 30 μm) improve specimen preparation efficiency.

Technical Parameters:

• Model: GCC-QPJ-3325
• Product Type: Manual Paraffin Microtome
• Dimensions (L × W × H): 540 × 460 × 265 mm
• Weight: 26.5 kg
• Vertical Stroke: 60 mm ±1 mm
• Horizontal Stroke: Approx. 24 mm ±1 mm
• Section Thickness Range: 0–60 μm
• Section Thickness Settings: 0.5–2 μm (0.5 μm increments); 2–10 μm (1 μm increments); 10–20 μm (2 μm increments); 20–60 μm (5 μm increments)
• Trimming Thickness: 10 μm / 30 μm
• Specimen Retraction: 30 μm (Can Be Disabled)
• Specimen Orientation: Horizontal ±8° / Vertical ±8°
• Handwheel Lock: 360° Arbitrary Lock + Top Dead Center Lock
• Blade Holder: Three-Point Positioning with Lateral Adjustment
• Maximum Specimen Size: 30 × 40 × 7 mm
• Drive Mode: Mechanical Advance

Applications:

• Pathology Laboratories
• Histology Laboratories
• Hospital Diagnostic Laboratories
• Medical Universities
• Biomedical Research Institutes
• Pharmaceutical Research Laboratories
• Tissue Morphology Studies
• Histopathology Research
• Educational and Training Laboratories
