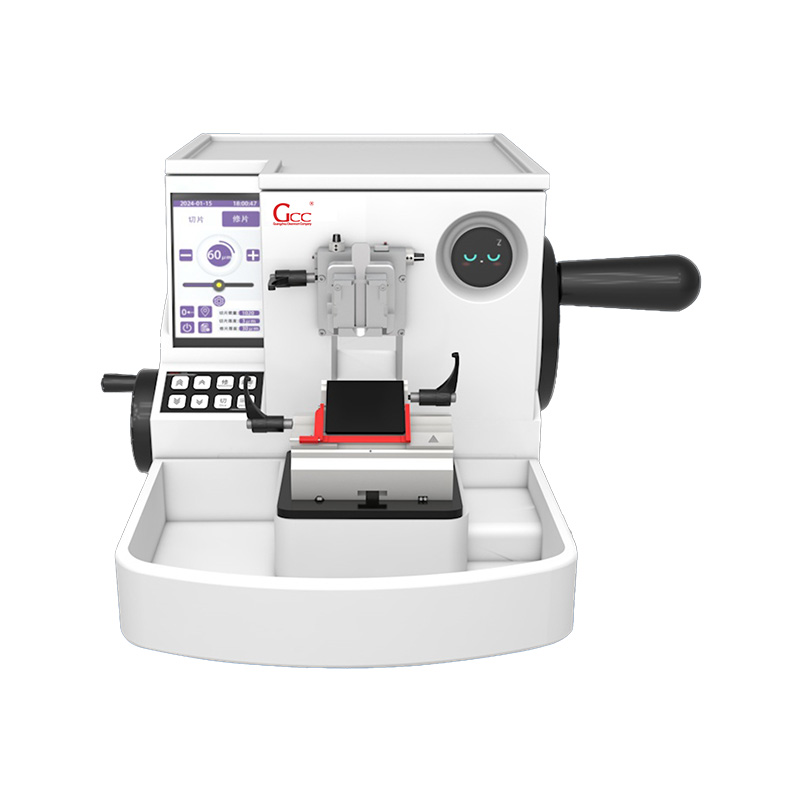

Semi-Automatic Paraffins Microtome GCC-QPJ-X7-Elite

The GCC-QPJ-X7-Elite Semi-Automatic Paraffin Microtome delivers precise tissue sectioning for pathology, histology, and research laboratories. Featuring a dual-screen control system, high-precision dual-rail transmission, automatic specimen retraction, and adjustable section thickness from 0.5–100 μm, it provides reliable performance and consistent section quality for routine laboratory applications.

Key Features:

• Dual-Screen Intelligent Control System– Equipped with a 5.0-inch main display and a 1.54-inch secondary display, providing clear parameter visibility and one-touch switching between trimming and sectioning modes.
• High-Precision Dual-Rail Transmission Structure– The dual-rail system ensures stable guidance and smooth movement for accurate and consistent sectioning performance.
• Ultra-Thin Precision Sectioning– Adjustable section thickness from 0.5–100 μm to meet the requirements of pathology and histology laboratories.
• Flexible Specimen Positioning Function– Allows forward and backward specimen movement for precise positioning according to sectioning requirements.
• Antistatic Waste Collection Tray– Designed with antistatic materials to reduce paraffin debris adhesion and scattering, keeping the workspace clean and improving efficiency.
• Automatic Sleep Protection Mode– Both displays automatically enter sleep mode when the handwheel is locked, enhancing operational safety.
• Integrated Storage Platform– Convenient storage space for brushes, scrapers, slides, and other commonly used accessories.
• Selectable Handwheel Rotation Direction– Users can choose either clockwise or counterclockwise rotation according to personal preference.
• Automatic Specimen Retraction– Minimizes friction between the specimen and blade, improving section quality and protecting the specimen.
• Three-Point Blade Holder Design– Features lateral movement adjustment, allowing full utilization of the blade edge and extending blade life.

Technical Parameters:

• Model: GCC-QPJ-X7-Elite
• Product Type: Semi-Automatic Paraffin Microtome
• Maximum Specimen Size: 50 × 66 × 30 mm
• Horizontal Travel: Approx. 30 mm ±1 mm
• Vertical Stroke: 70 mm ±1 mm
• Section Thickness Range: 0.5–100 μm
• Section Thickness Settings: 0.5–5 μm (0.5 μm increments); 5–20 μm (1 μm increments); 20–60 μm (5 μm increments); 60–100 μm (10 μm increments)
• Trimming Thickness Range: 1–999 μm
• Trimming Thickness Settings: 1–10 μm (1 μm increments); 10–20 μm (2 μm increments); 20–50 μm (5 μm increments); 50–100 μm (10 μm increments); 100–999 μm (50 μm increments)
• Specimen Retraction: 5–100 μm in manual sectioning mode (adjustable and can be disabled)
• Specimen Orientation: Horizontal ±8° / Vertical ±8°
• Drive Mode: Stepper Motor Drive
• Blade Holder: Three-Point Positioning with Lateral Movement
• Handwheel Lock: 360° Arbitrary Position Lock
• Antistatic Waste Tank Capacity: 1400 ml
• Handwheel Rotation Direction: Clockwise or Counterclockwise Selectable

Applications:

• Pathology Laboratories
• Histology Laboratories
• Hospital Diagnostic Centers
• Clinical Diagnostic Laboratories
• Medical Universities
• Biomedical Research Institutes
• Pharmaceutical Research Laboratories
• Tissue Morphology Studies
• Histopathology Research
• Educational and Training Laboratories
