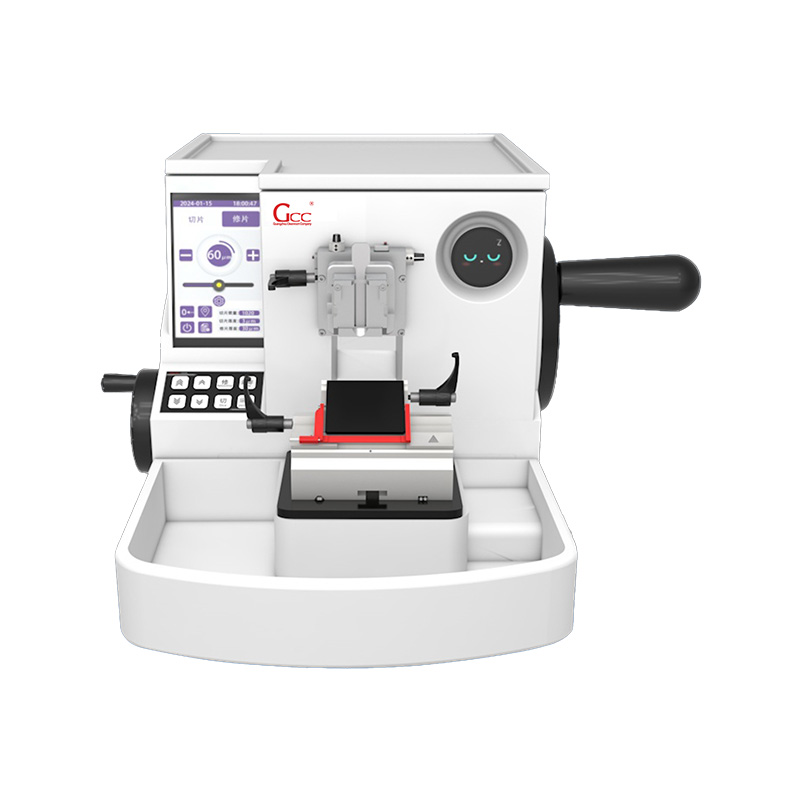

Semi-Automatic Paraffin Microtome GCC-QPJ-CU1200C

The GCC-QPJ-CU1200C Semi-Automatic Paraffin Microtome features a dual-screen intelligent control system, high-precision sectioning technology, and adjustable thickness from 0.5–100 μm. Designed for pathology, histology, and research laboratories, it delivers reliable performance, consistent section quality, and efficient workflow.

Key Features:

• Dual-Screen Intelligent Control System– Features a 5.0-inch main touchscreen and a 1.28-inch secondary display for intuitive operation and real-time section thickness monitoring.
• One-Click Sectioning and Trimming Mode Switching– Quickly switch between trimming and sectioning modes to improve workflow efficiency.
• High-Precision Dual-Rail Transmission System– Provides stable support and guidance for smooth movement and highly accurate sectioning performance.
• Ultra-Thin Precision Sectioning– Adjustable section thickness from 0.5–100 μm for uniform and consistent tissue sections.
• Multiple Control Methods– Supports touchscreen operation, physical buttons, and fine adjustment through the secondary screen knob to accommodate different user preferences.
• Antistatic Waste Collection System– Electromagnetic suction waste tray helps maintain a clean and efficient working environment.
• Removable Storage Platform– Convenient storage for slides, blades, brushes, humidifiers, and other laboratory accessories.
• Automatic Sleep Protection Mode– Main and secondary displays automatically enter sleep mode when the handwheel is locked, enhancing operational safety.
• Three Handwheel Locking Modes– Includes 360° arbitrary lock, vertex lock, and nine-point lock for enhanced safety and flexibility.
• Automatic Specimen Retraction– Improves section quality and reduces the risk of specimen damage.
• Detachable Blade Holder– Easy to remove and clean, improving maintenance convenience.
• Bilingual User Interface– Supports both Chinese and English operating interfaces.

Technical Parameters:

• Model: GCC-QPJ-CU1200C
• Product Type: Semi-Automatic Paraffin Microtome
• Slice Thickness Range: 0.5–100 μm
• Section Thickness Increment: 0.5–5 μm (0.5 μm step); 5–10 μm (1 μm step); 10–20 μm (2 μm step); 20–50 μm (5 μm step); 50–100 μm (10 μm step)
• Trimming Thickness Range: 0.5–100 μm
• Sectioning Precision: 0.5 μm
• Maximum Specimen Size: 50 × 66 × 30 mm
• Horizontal Travel: Approximately 30 mm ±1 mm
• Vertical Stroke: 70 mm ±1 mm
• Specimen Orientation: Horizontal ±8° / Vertical ±8°
• Specimen Retraction: 5–100 μm (Manual Mode, Adjustable or Disable)
• Drive Mode: Stepper Motor Drive
• Handwheel Lock: 360° Arbitrary Position Lock
• Blade Holder: 3-Point Positioning with Lateral Movement
• Antistatic Waste Tank Capacity: 1400 ml
• Handwheel Rotation Direction: Clockwise or Counterclockwise Selectable

Applications:

•  Pathology Laboratories
•  Histology Laboratories
•  Hospital Diagnostic Centers
•  Medical Universities
•  Biomedical Research Institutes
•  Pharmaceutical Research Laboratories
•  Tissue Morphology Studies
•  Histopathology Research
•  Clinical Diagnostic Laboratories
•  Educational and Training Laboratories
